Communication Interface
SPX485EN-L
MaxLinear / Exar
RS-485/RS-422 Transceiver
Key specifications
10 Mbps
Low Power BiCMOS Design
4.75 V to 5.25 V (Nominal 5V)
8-SOIC
- Manufacturer
- MaxLinear / Exar
- Package
- 8-SOIC (Narrow Body)
- Category
- Communication Interface
Genuine, traceable stock

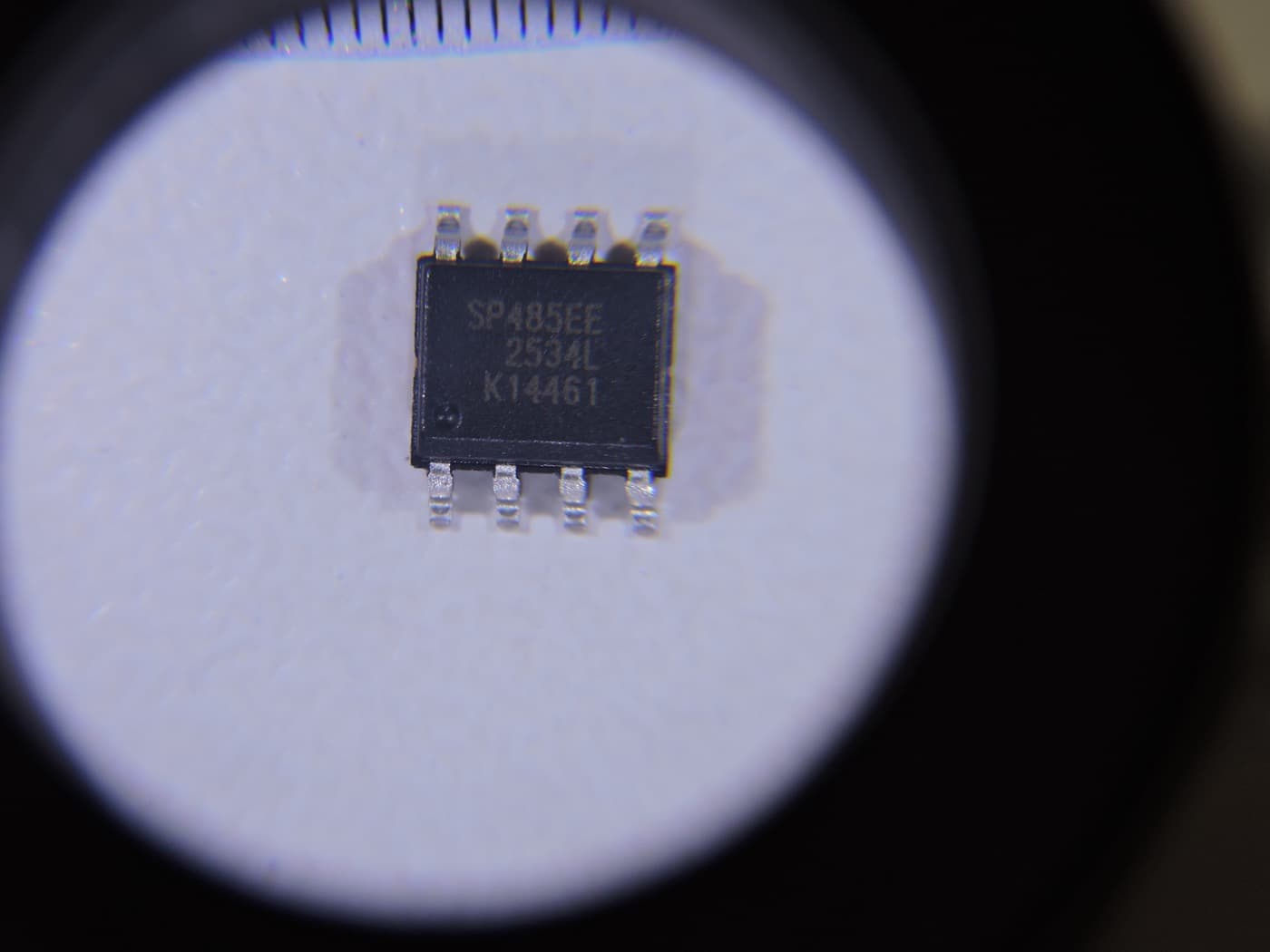

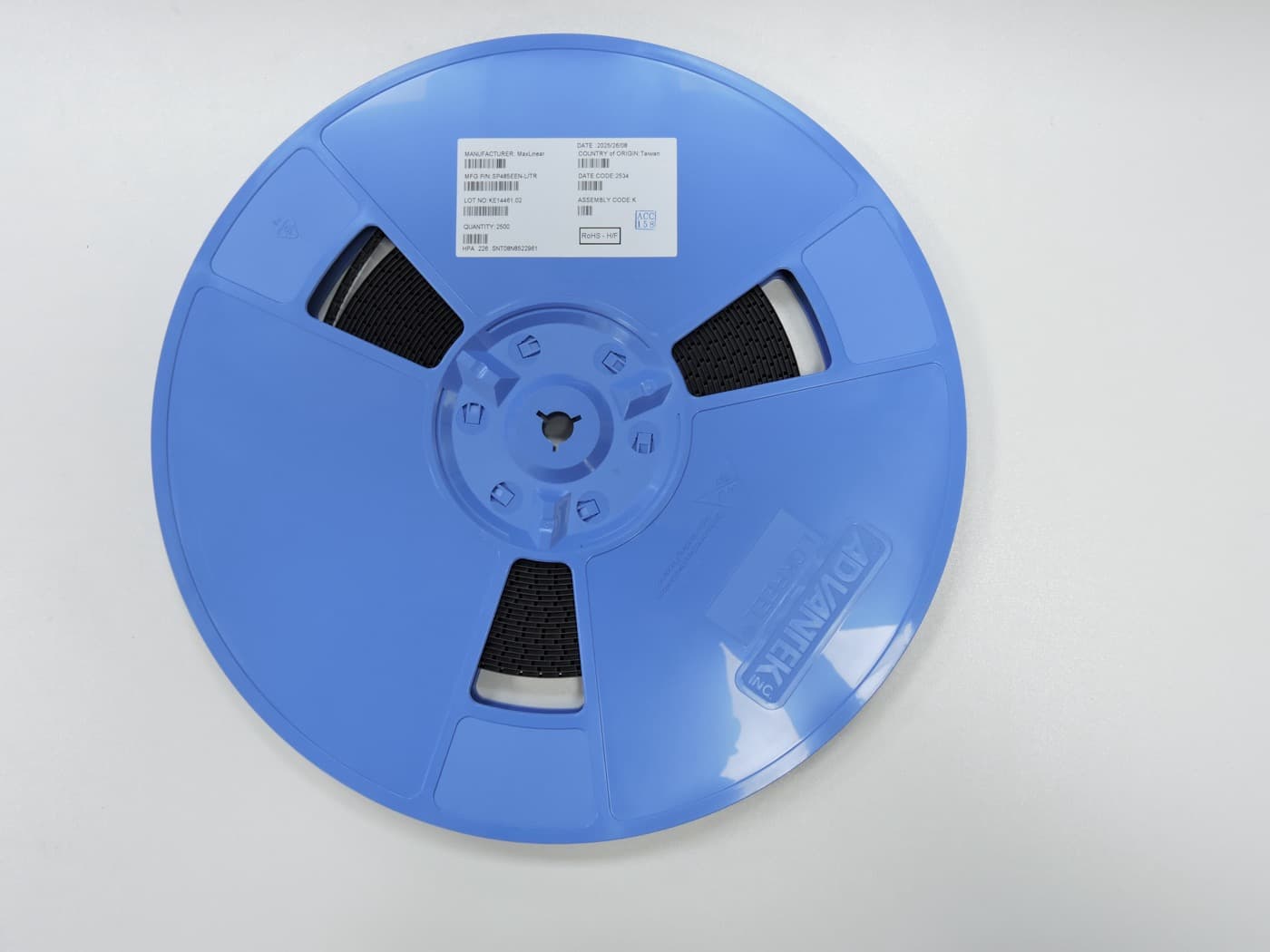

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | MaxLinear / Exar |
|---|
8
| Part number | SPX485EN-L |
|---|
11
| Product type | RS-485/RS-422 Transceiver |
|---|
14
| Communication protocol | RS-485, RS-422 |
|---|
Performance
| Data Rate | 10 Mbps |
|---|
21
| Duplex mode | Half-Duplex |
|---|
24
| Number of drivers / receivers | 46023 |
|---|
26
| Receiver hysteresis | 20 mV |
|---|
29
| ESD protection | ±15 kV (Human Body Model) |
|---|
Power & consumption
| Supply Voltage | 4.75 V to 5.25 V (Nominal 5V) |
|---|
37
| Supply current | Low Power BiCMOS Design |
|---|
Package & environment
| Package | 8-SOIC (Narrow Body) |
|---|
44
| Dimensions | 4.9 mm x 3.9 mm |
|---|
47
| Mounting type | Surface Mount (SMD/SMT) |
|---|
50
| Pin count | 8 |
|---|
52
| Operating temperature | -40°C to +85°C |
|---|
Other features
| Features | Enhanced ESD Performance, Fail-Safe Receiver, Low EMI |
|---|
59
| Application areas | Industrial Control, Building Automation, Security Systems, Instrumentation |
|---|
