Communication Interface

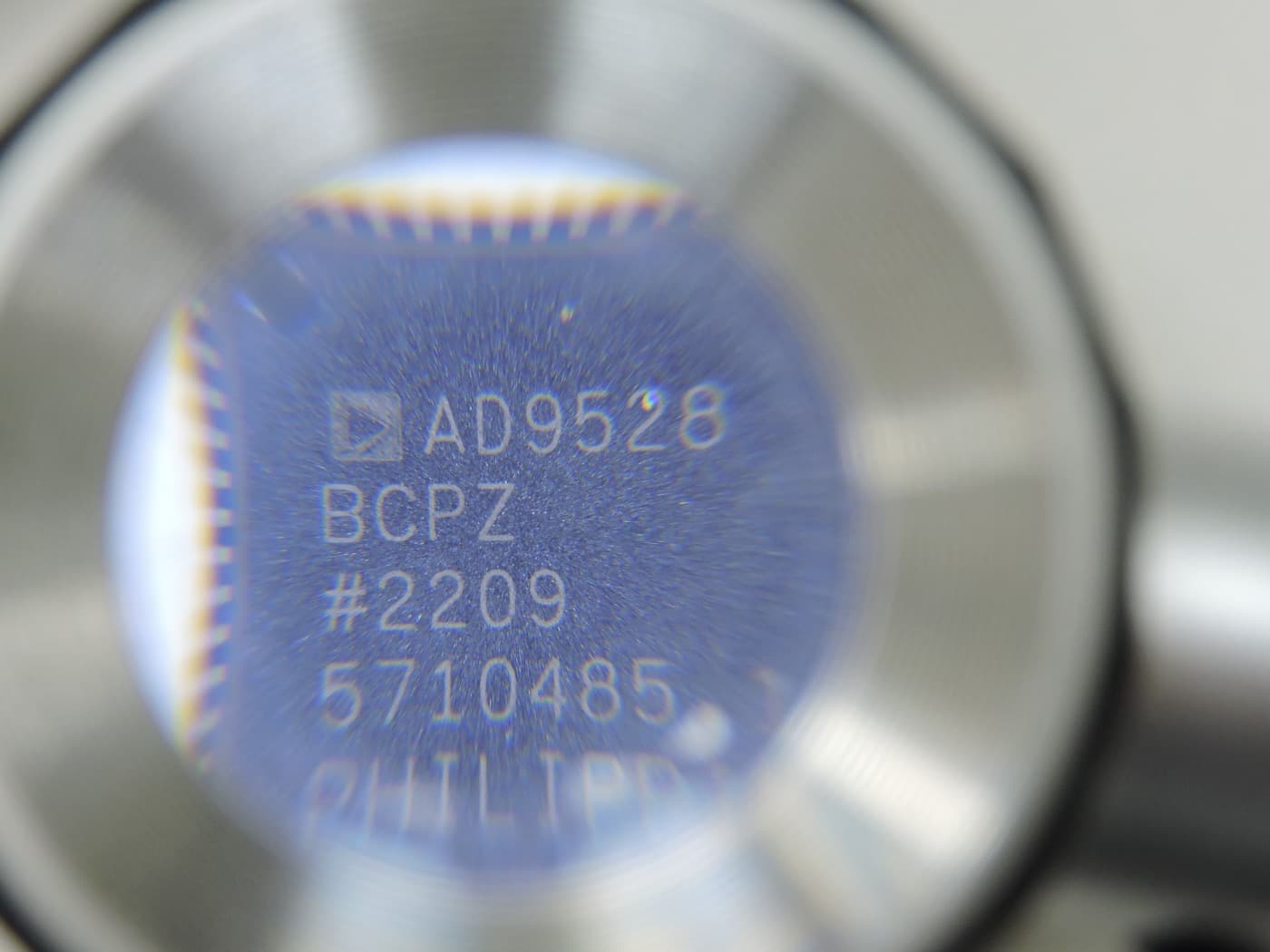

AD9528BCPZ
Analog Devices Inc.
Clock Generator / JESD204B/C SYSREF Generator
Key specifications
3.450 GHz to 4.025 GHz
Up to 110 MHz
71 mA
72-Lead LFCSP
- Manufacturer
- Analog Devices Inc.
- Package
- 72-Lead LFCSP (10x10 mm)
- Category
- Communication Interface
Genuine, traceable stock
Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | Analog Devices Inc. (ADI) |
|---|
8
| Part number | AD9528BCPZ |
|---|
11
| Product type | Clock Generator / JESD204B/C SYSREF Generator |
|---|
14
| Architecture | Dual PLL with Integrated VCO |
|---|
Output characteristics
| Number of Outputs | 14 |
|---|
20
| Output type | LVDS / HSTL |
|---|
23
| Max output frequency | 6 outputs up to 1.25 GHz |
|---|
27
| Output-to-output skew | 20 ps (typical) |
|---|
30
| Absolute output jitter | <160 fs (at 122.88 MHz) |
|---|
33
| Duty cycle | 44% to 62% (varies by frequency) |
|---|
Internal PLL & VCO
| PLL2 VCO Frequency Range | 3.450 GHz to 4.025 GHz |
|---|
40
| PLL1 phase-detector rate | Up to 110 MHz |
|---|
43
| PLL2 phase-detector rate | Up to 275 MHz |
|---|
Input characteristics
| Max Input Frequency | 1250 MHz |
|---|
50
| Reference input | Redundant Inputs with Auto/Manual Switching |
|---|
Phase adjustment
| Coarse Delay Adjustment | 63 steps |
|---|
57
| Fine delay adjustment | 15 steps, 31 ps resolution |
|---|
Power & consumption
| Supply Voltage | 3.135 V to 3.465 V |
|---|
64
| Operating supply current | 71 mA |
|---|
Interface & package
| Control Interface | SPI and I2C Compatible |
|---|
71
| Package | 72-Lead LFCSP (10x10 mm) |
|---|
74
| Mounting type | SMD/SMT (Surface-Mount) |
|---|
Operating environment
| Operating Temperature | -40°C to +85°C |
|---|
81
| Moisture sensitivity level | Yes |
|---|
Other features
| Features | JESD204B/C SYSREF Generation, Digital Lock Detect |
|---|
