Communication Interface
ADL5501AKSZ-R7
Analog Devices Inc.
RF Power Detector / Mean-Responding Power Meter
Key specifications
50 MHz to 6 GHz
1.1 mA (at 3 V)
2.7 V to 5.5 V
6-Lead Thin Shrink Small Outline Transistor Package [SC-70]
- Manufacturer
- Analog Devices Inc.
- Package
- 6-Lead Thin Shrink Small Outline Transistor Package [SC-70] (KS-6)
- Category
- Communication Interface

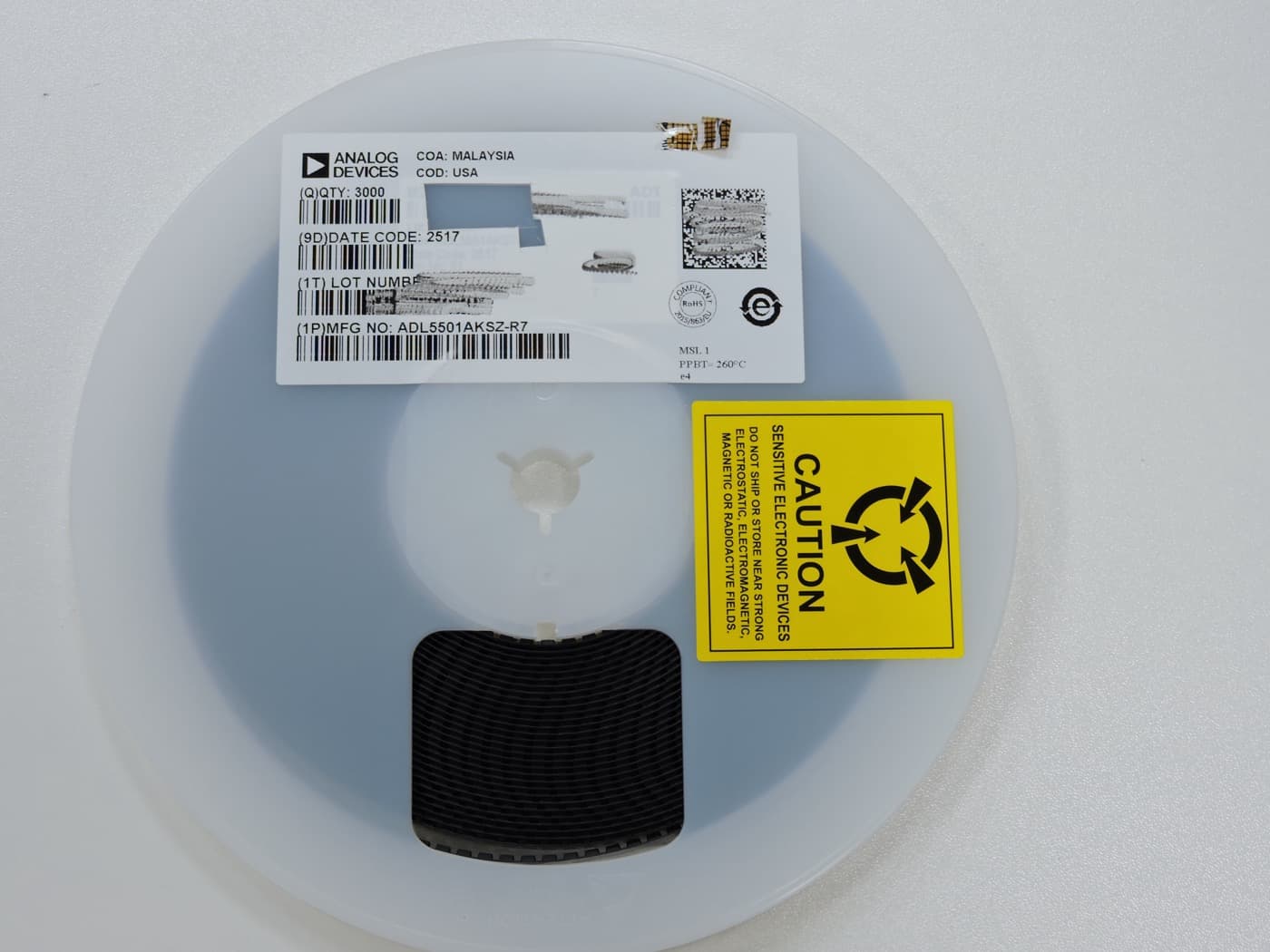

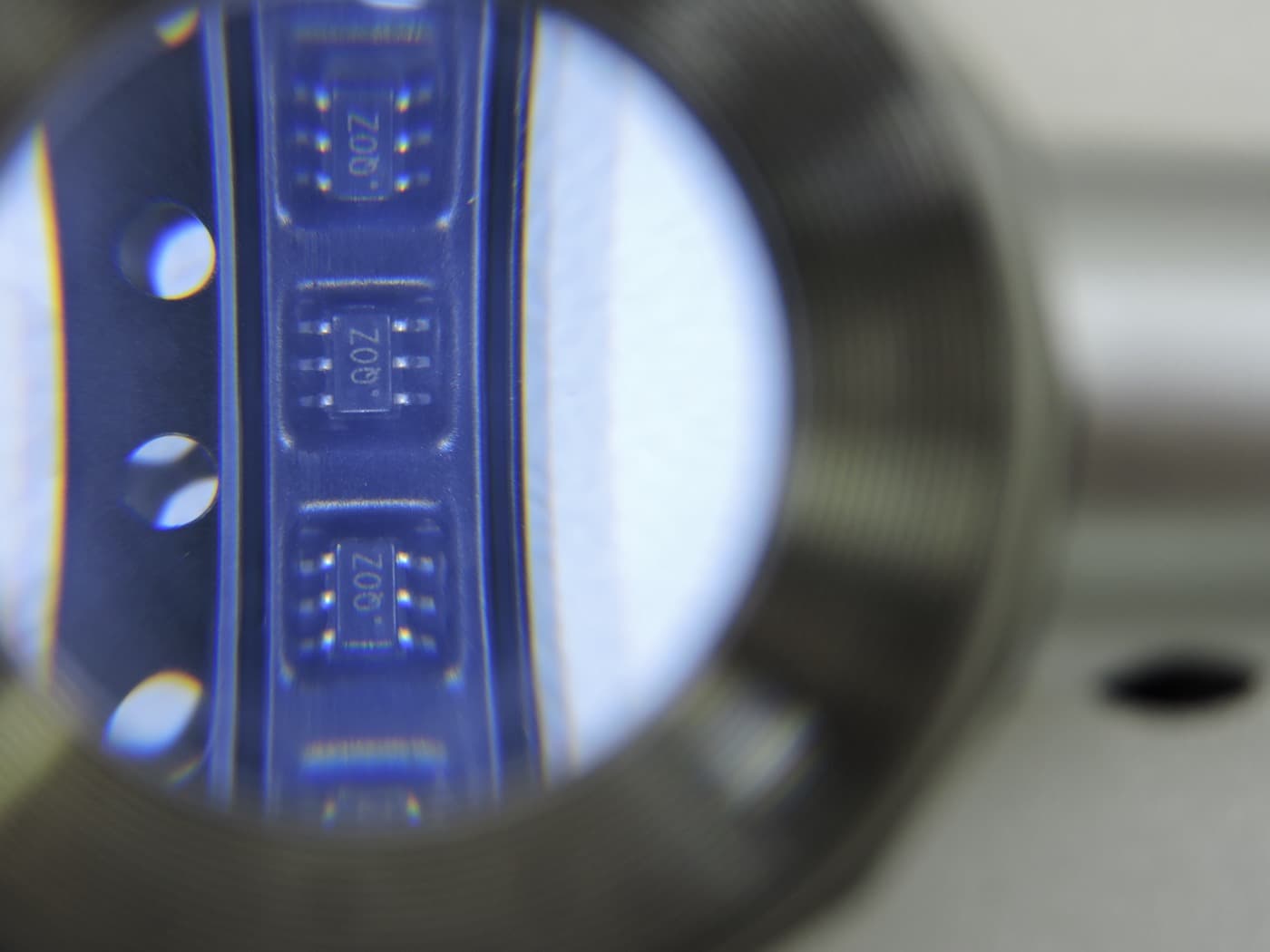

Genuine, traceable stock
Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | Analog Devices Inc. (ADI) |
|---|
8
| Part number | ADL5501AKSZ-R7 |
|---|
11
| Product type | RF Power Detector / Mean-Responding Power Meter |
|---|
14
| Architecture | Mean-Responding Detector |
|---|
RF characteristics
| Frequency Range | 50 MHz to 6 GHz |
|---|
21
| Input dynamic range | 30 dB |
|---|
24
| Max input level | +15 dBm (1.25 V rms) |
|---|
27
| Input impedance | 50 Ω |
|---|
30
| Conversion gain | 6.3 V/V rms (at 900 MHz) |
|---|
Performance
| Response Time | <1 µs |
|---|
37
| Temperature stability | Excellent over full temperature range |
|---|
40
| Measurement error | Near 0 dB (upper dynamic range) |
|---|
Power & consumption
| Supply Voltage | 2.7 V to 5.5 V |
|---|
47
| Power consumption | 3.3 mW (at 3 V) |
|---|
50
| Supply current | 1.1 mA (at 3 V) |
|---|
Interface & package
| Interface Type | DC Voltage Output |
|---|
57
| Package | 6-Lead Thin Shrink Small Outline Transistor Package [SC-70] (KS-6) |
|---|
60
| Mounting type | SMD/SMT (Surface-Mount) |
|---|
Operating environment
| Operating Temperature | -40°C to +85°C |
|---|
Other features
| Features | Internal AC-Coupling, On-Chip Modulation Filter, True RMS Response for Complex Waveforms |
|---|
