Communication Interface

ADUM1201ARZ-RL7

Analog Devices Inc.

Digital Isolator

Key specifications

2 (Unidirectional, 1 Input / 1 Output)

DC to 25 Mbps (NRZ)

0.5 mA (per channel, typical)

8-Lead SOIC_N

Manufacturer: Analog Devices Inc.
Package: 8-Lead SOIC_N (Narrow Body)
Category: Communication Interface

Request a quote

Genuine, traceable stock

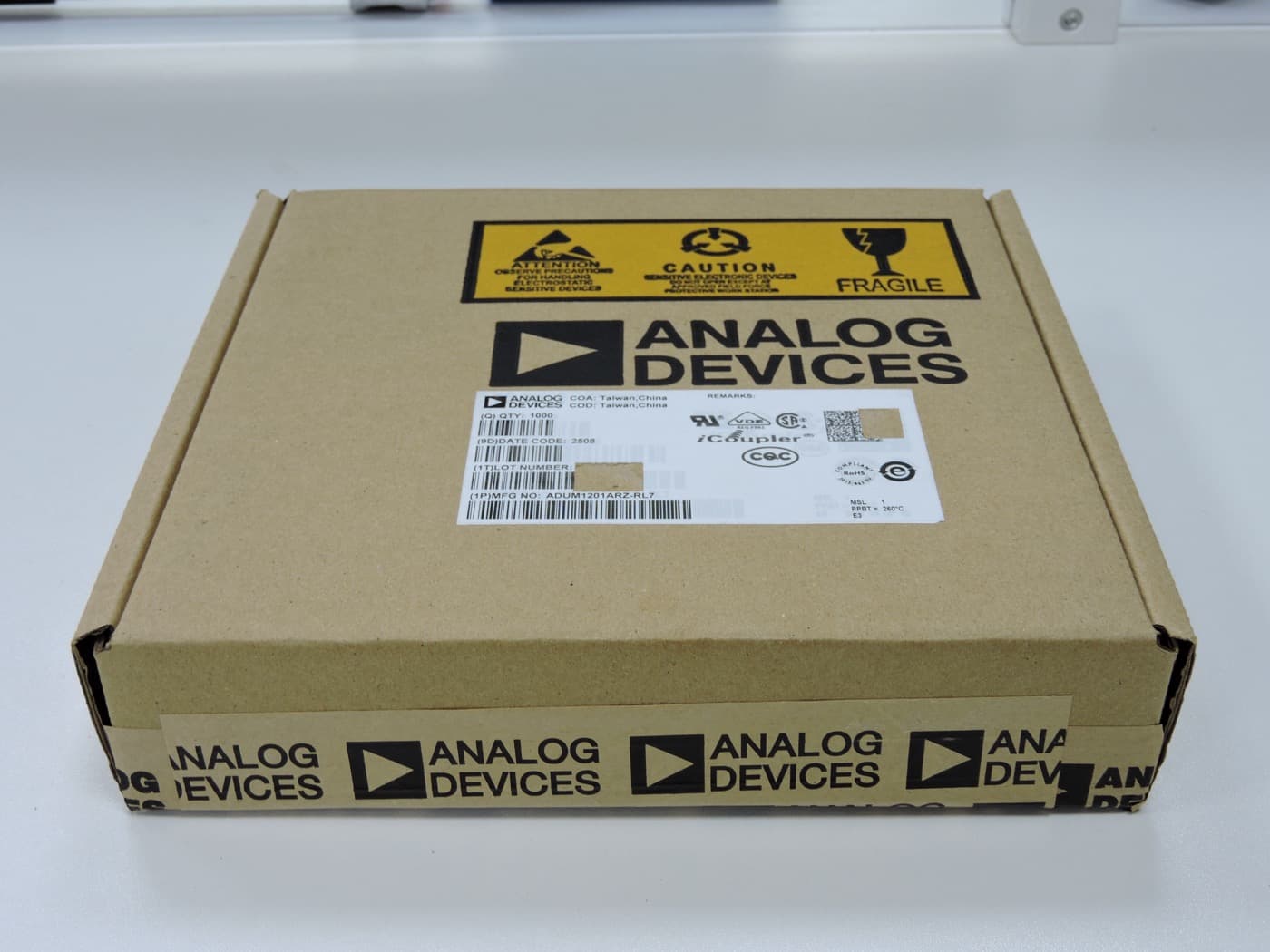

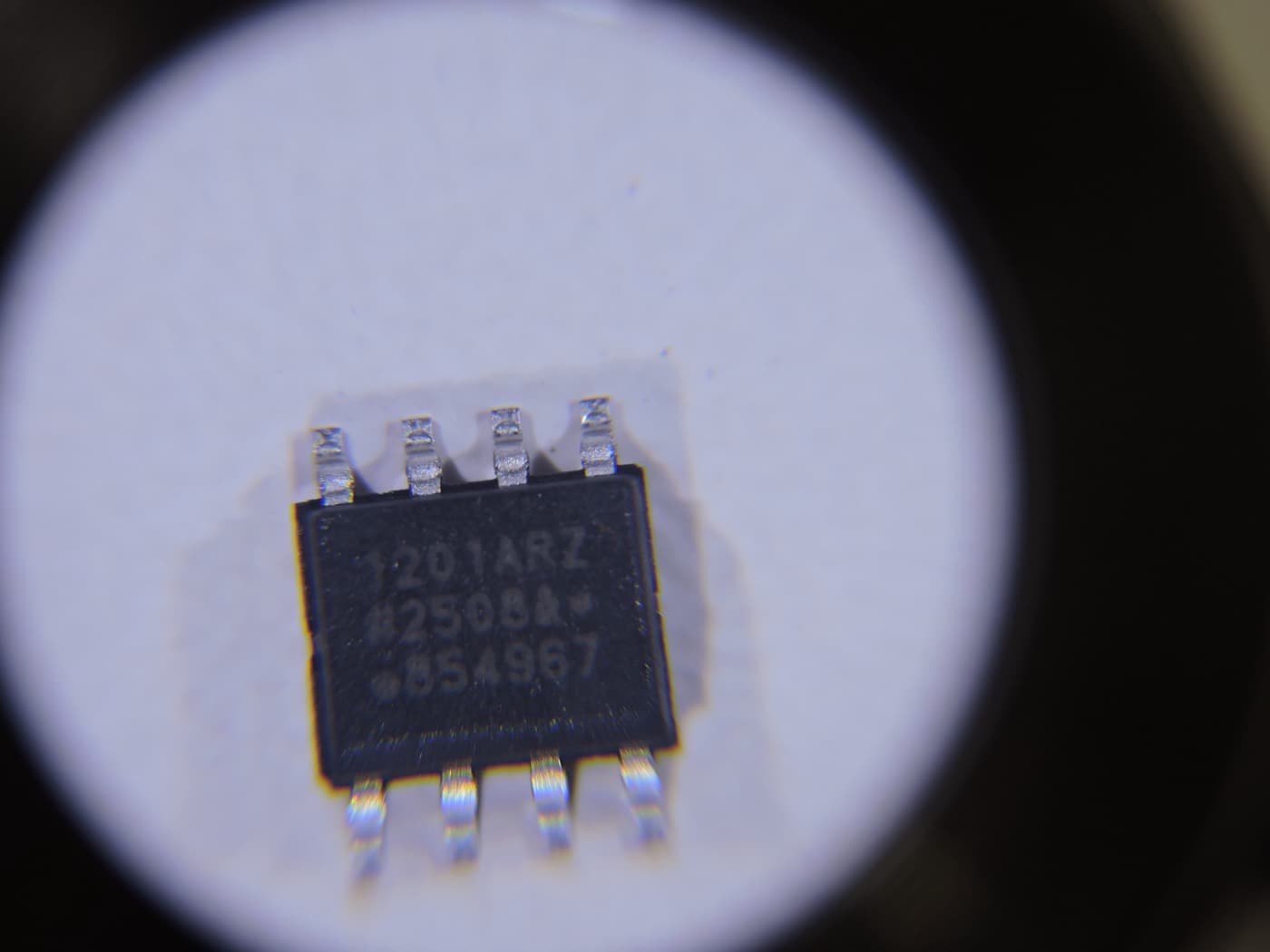

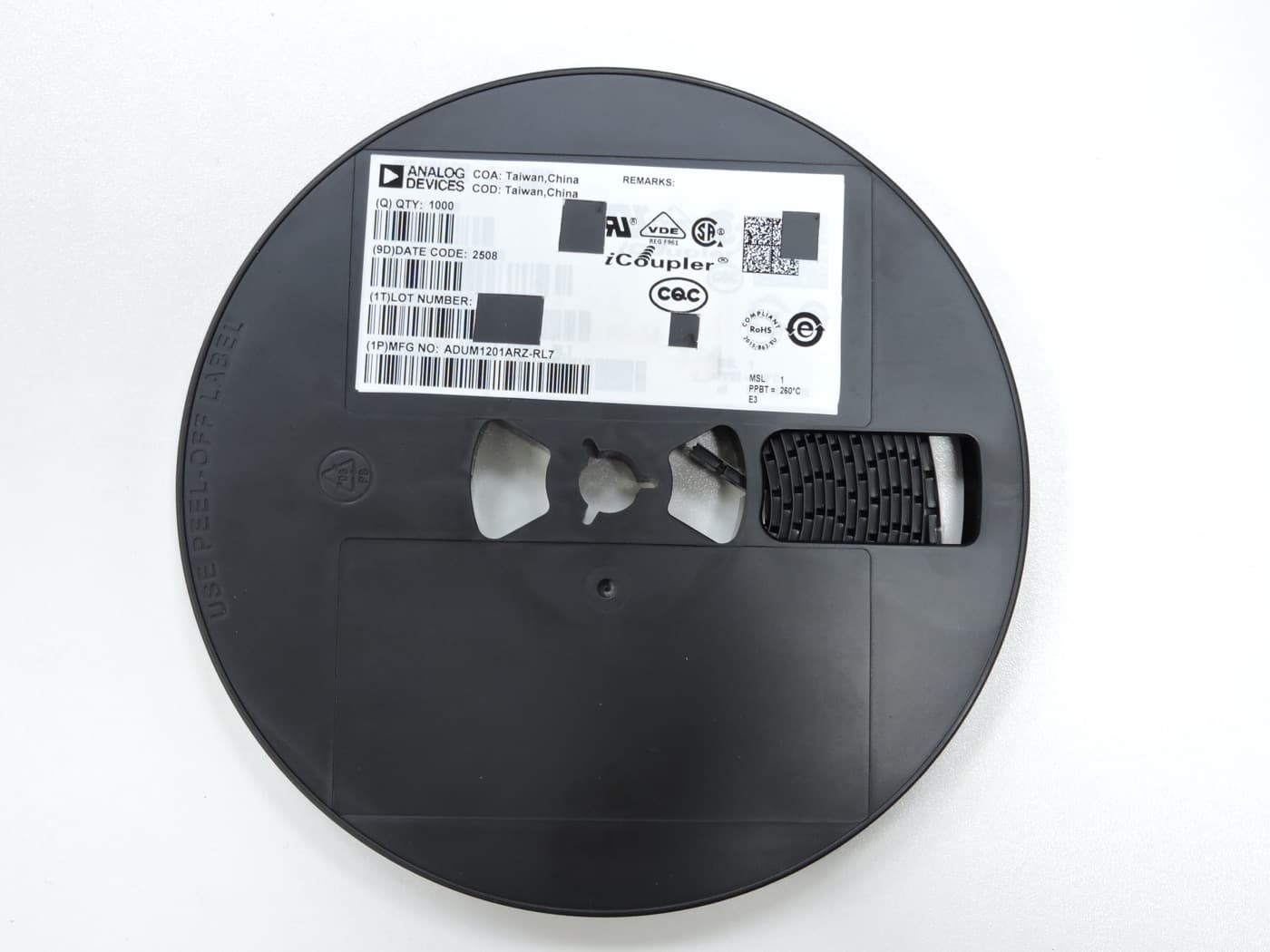

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.

Datasheet

Full specifications

Basic information

Manufacturer	Analog Devices Inc. (ADI)

8

Part number	ADUM1201ARZ-RL7

11

Product type	Digital Isolator

14

Technology	iCoupler (Chip-scale Micro-transformer)

Isolation characteristics

Number of Channels	2 (Unidirectional, 1 Input / 1 Output)

21

Isolation voltage	2500 Vrms (for 1 minute)

24

Common-mode transient immunity (CMTI)	>25 kV/μs

27

Insulation resistance	>10¹² Ω

Performance

Data Rate	DC to 25 Mbps (NRZ)

34

Propagation delay	15 ns (typical), 30 ns (max)

37

Pulse-width distortion	<3 ns

40

Channel-to-channel matching	<3 ns

42

Rise / fall time	10 ns (typical)

Power & consumption

Supply Voltage (VDD1/VDD2)	2.7 V to 5.5 V

49

Quiescent current	0.5 mA (per channel, typical)

52

Dynamic current	0.8 mA/Mbps (per channel, typical)

55

Power consumption	1/10 to 1/6 of an optocoupler

Interface & package

Logic Levels	3 V / 5 V Level Translation

62

Package	8-Lead SOIC_N (Narrow Body)

65

Mounting type	SMD/SMT (Surface-Mount)

Operating environment

Operating Temperature	-40°C to +105°C

72

Moisture sensitivity level	Yes

Other features

Features	Bidirectional Communication, Refresh Feature for DC Correctness
