SP3232EEN-L
MaxLinear / Exar
RS-232 Transceiver
Key specifications
235 kbps (Min)
300 µA (No Load)
3.0 V to 5.5 V
SOIC-16
- Manufacturer
- MaxLinear / Exar
- Package
- SOIC-16 (Narrow Body)
- Category
- Communication Interface
Genuine, traceable stock

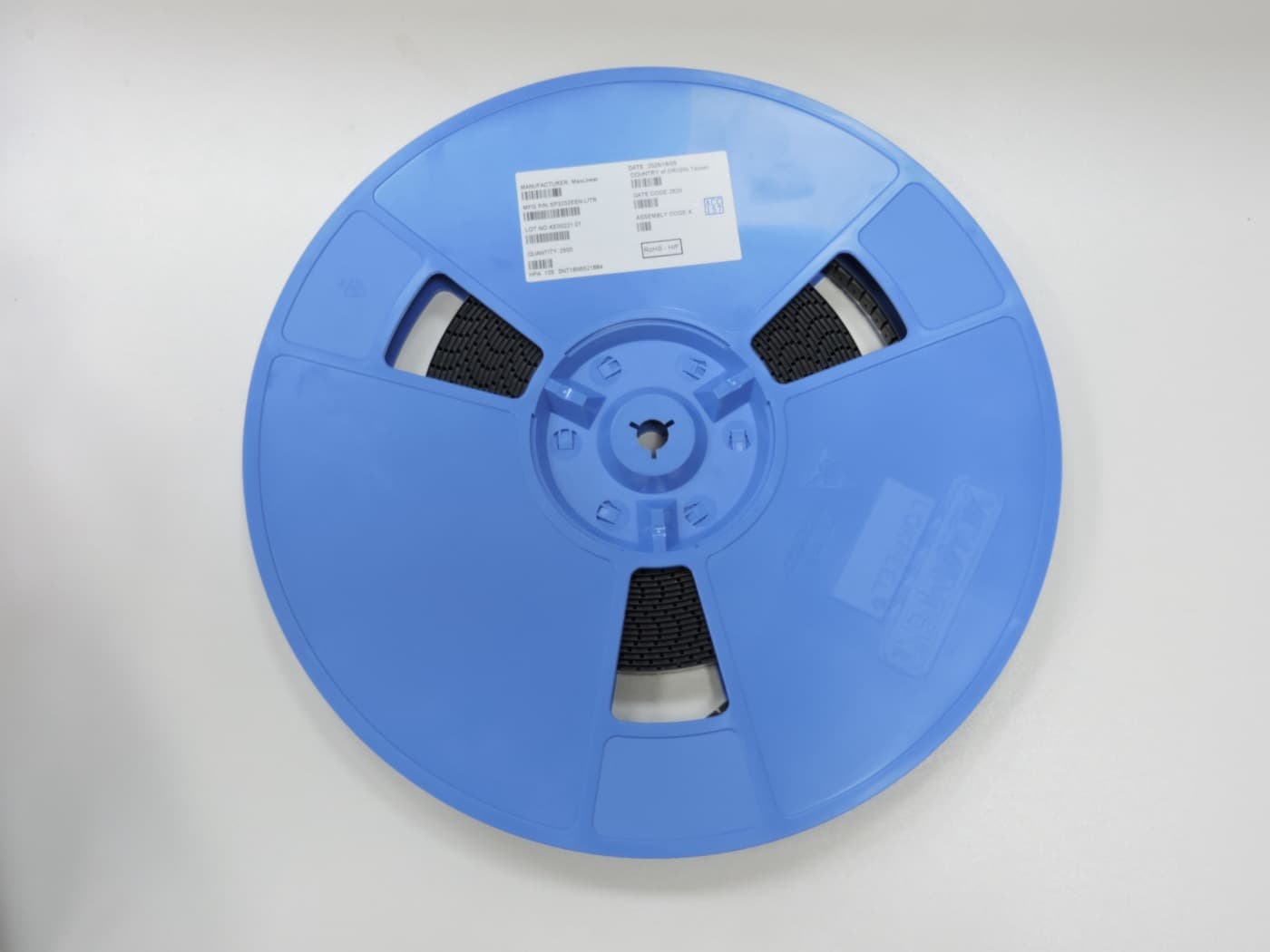

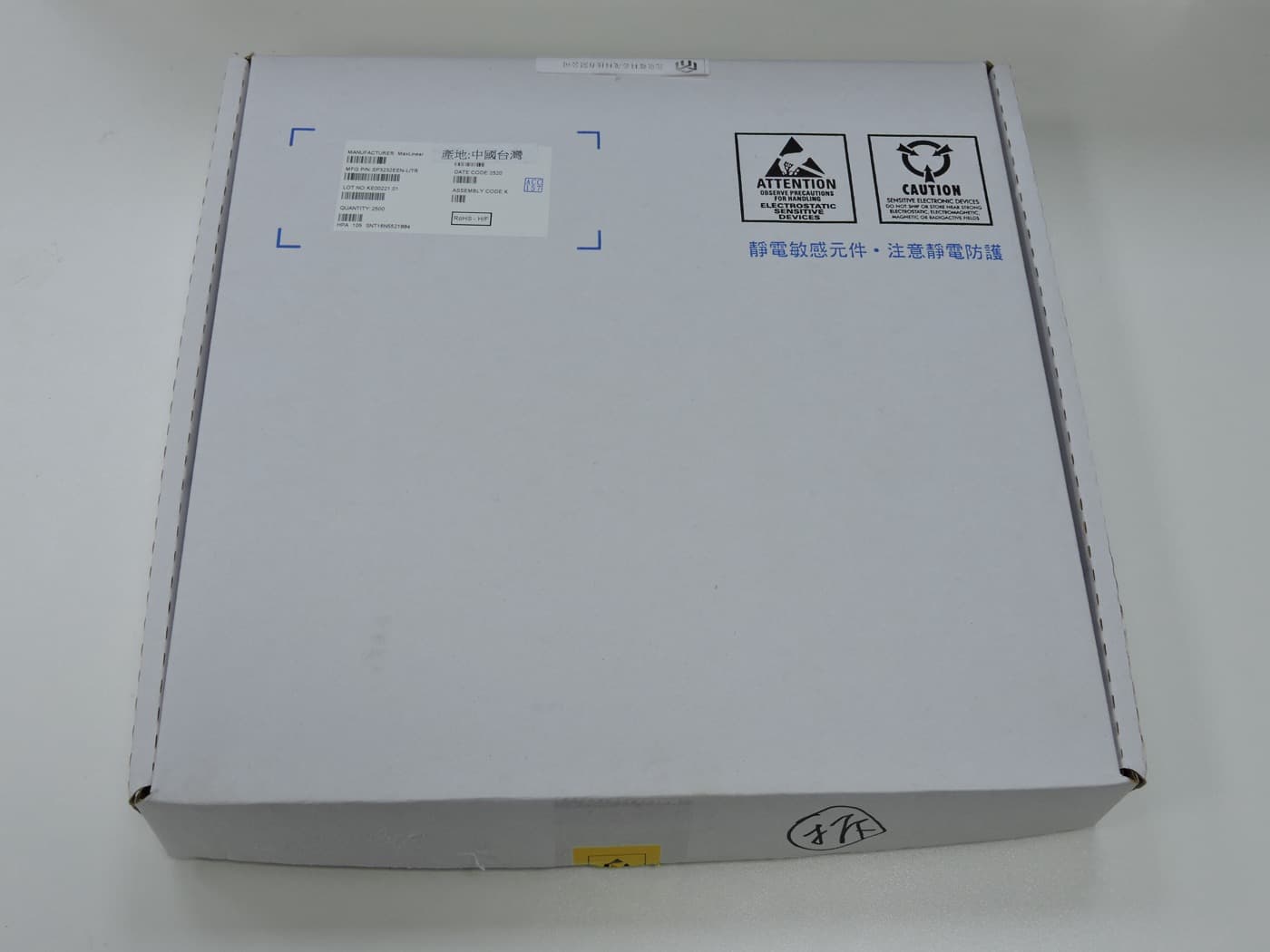

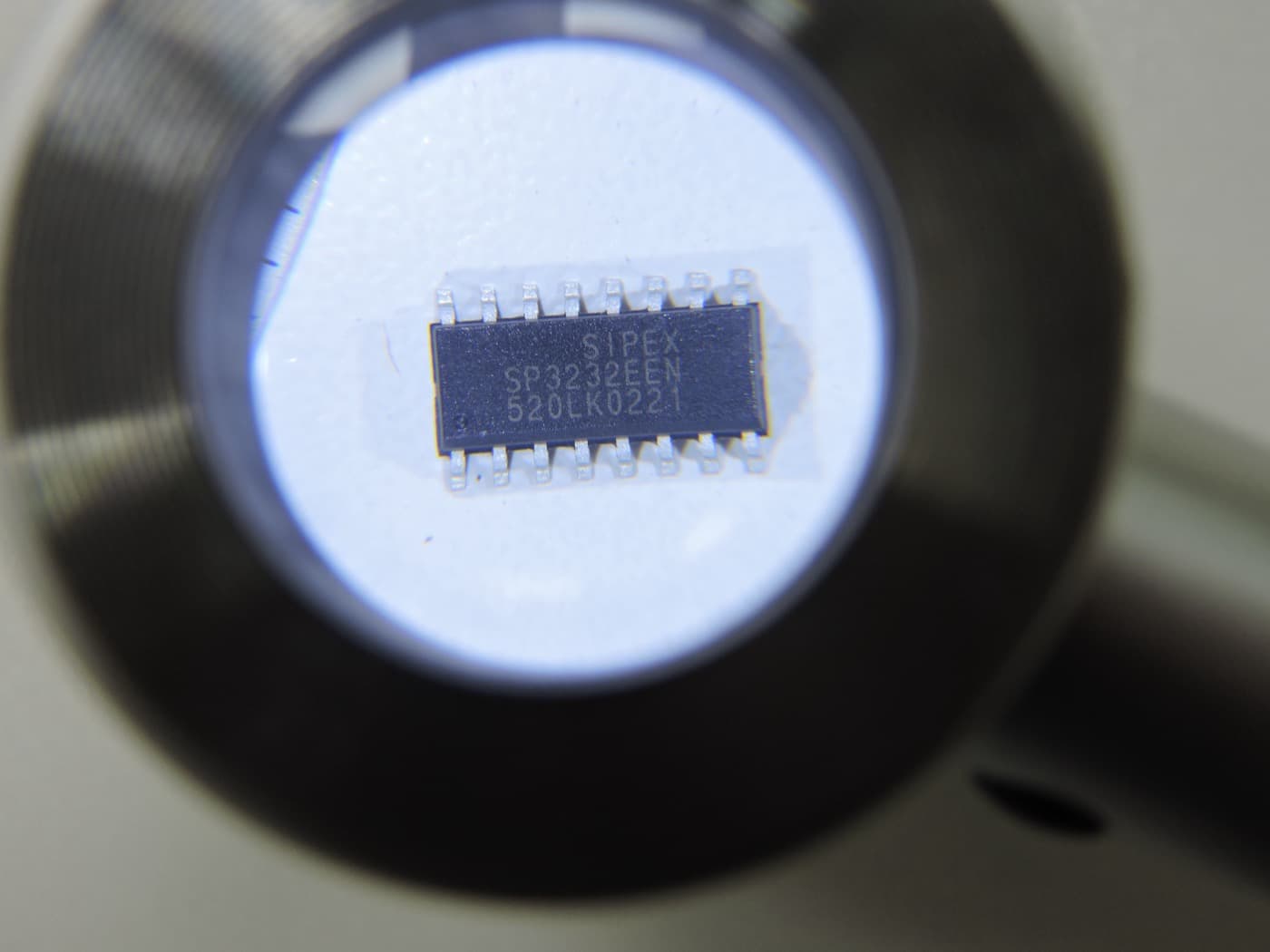

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | MaxLinear / Exar |
|---|
8
| Part number | SP3232EEN-L |
|---|
11
| Product type | RS-232 Transceiver |
|---|
14
| Communication protocol | RS-232, TIA/EIA-232-F, ITU V.28 |
|---|
Performance
| Data Rate | 235 kbps (Min) |
|---|
22
| Number of drivers / receivers | 2/2 (Full-Duplex) |
|---|
25
| Slew rate | 35 V/µs (Max) |
|---|
28
| ESD protection | ±15 kV (Human Body Model) |
|---|
Power & consumption
| Supply Voltage | 3.0 V to 5.5 V |
|---|
37
| Supply current | 300 µA (No Load) |
|---|
40
| Charge pump | High-Efficiency, requires 0.1µF capacitors |
|---|
43
| Logic-input compatibility | Accepts 5.0V logic with 3.3V supply |
|---|
Package & environment
| Package | SOIC-16 (Narrow Body) |
|---|
50
| Dimensions | 9.9 mm x 3.9 mm |
|---|
53
| Mounting type | Surface Mount (SMD/SMT) |
|---|
56
| Pin count | 16 |
|---|
58
| Operating temperature | -40°C to +85°C |
|---|
Other features
| Features | Internal Charge Pumps, 4 External Capacitors (0.1µF), Auto-Shutdown (Driver Output Disabled) |
|---|
65
| Application areas | Portable Equipment, Handheld Devices, Notebooks, Computer Peripherals |
|---|
