Communication Interface
MOC3063R2M
onsemi / Fairchild Semiconductor
Opto-Triac Driver with Zero-Crossing
Key specifications
50 mA (Max)
1.2 V (Typical)
6-Pin DIP
- Manufacturer
- onsemi / Fairchild Semiconductor
- Package
- 6-Pin DIP (Dual In-line Package)
- Category
- Communication Interface
Genuine, traceable stock

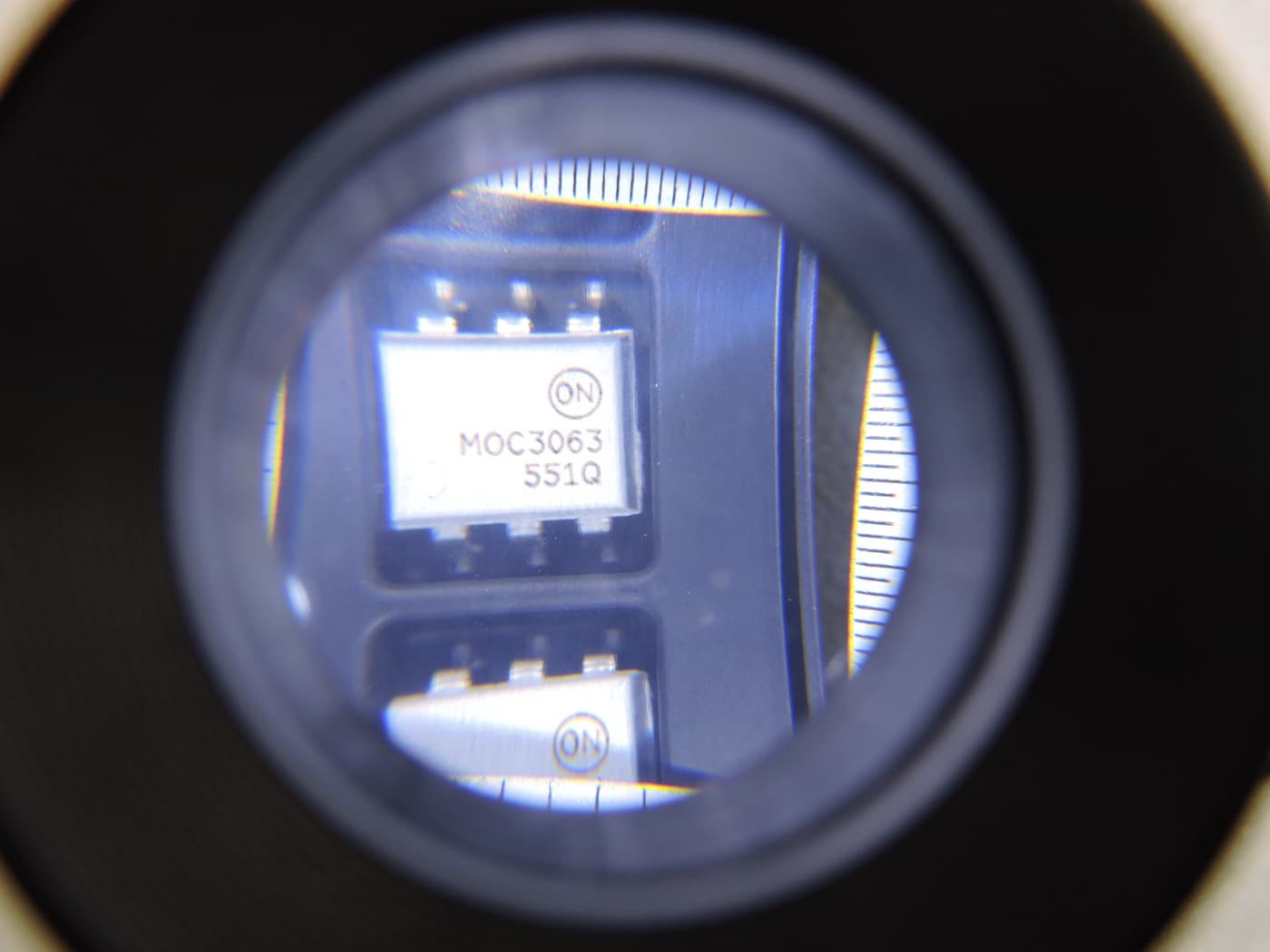

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | onsemi / Fairchild Semiconductor |
|---|
8
| Part number | MOC3063R2M |
|---|
11
| Product type | Opto-Triac Driver with Zero-Crossing |
|---|
14
| Architecture | Phototriac (Optically Isolated) |
|---|
Input characteristics
| Forward Current (If) | 50 mA (Max) |
|---|
21
| Forward voltage | 1.2 V (Typical) |
|---|
25
| Reverse voltage | 6 V (Max) |
|---|
28
| Trigger / LED trigger current | 5 mA (Max) |
|---|
Output characteristics
| Output Type | Triac Driver (Zero Crossing) |
|---|
35
| Repetitive peak off-state voltage | 600 V |
|---|
38
| Critical off-state dv/dt | 600 V/µs (Min) |
|---|
41
| Holding current | 100 µA (Typical) |
|---|
45
| On-state surge current | 1 A (Peak, 1 cycle) |
|---|
Isolation & performance
| Isolation Voltage (Viso) | 5000 Vrms (1 minute) |
|---|
52
| Common-mode transient immunity (CMTI) | 10,000 V/µs (Typical) |
|---|
55
| Turn-on time | < 1 ms (Typical, dependent on zero-cross) |
|---|
Package & environment
| Package | 6-Pin DIP (Dual In-line Package) |
|---|
62
| Mounting type | Through-Hole |
|---|
65
| Operating temperature | -40°C to +100°C |
|---|
Other features
| Features | Zero Voltage Crosses, High dv/dt, UL Recognized, VDE Recognized |
|---|
72
| Application areas | Solid State Relays (SSR), AC Motor Controls, Solenoid Drivers, Lighting Ballasts |
|---|
