Communication Interface

DP83848KSQ

Texas Instruments

Ethernet Transceiver (PHY)

Key specifications

10/100 Mbps

92 mA (Typical)

3.0 V to 3.6 V (Typical 3.3 V)

40-WQFN

Manufacturer: Texas Instruments
Package: 40-WQFN (6mm x 6mm)
Category: Communication Interface

Request a quote

Genuine, traceable stock

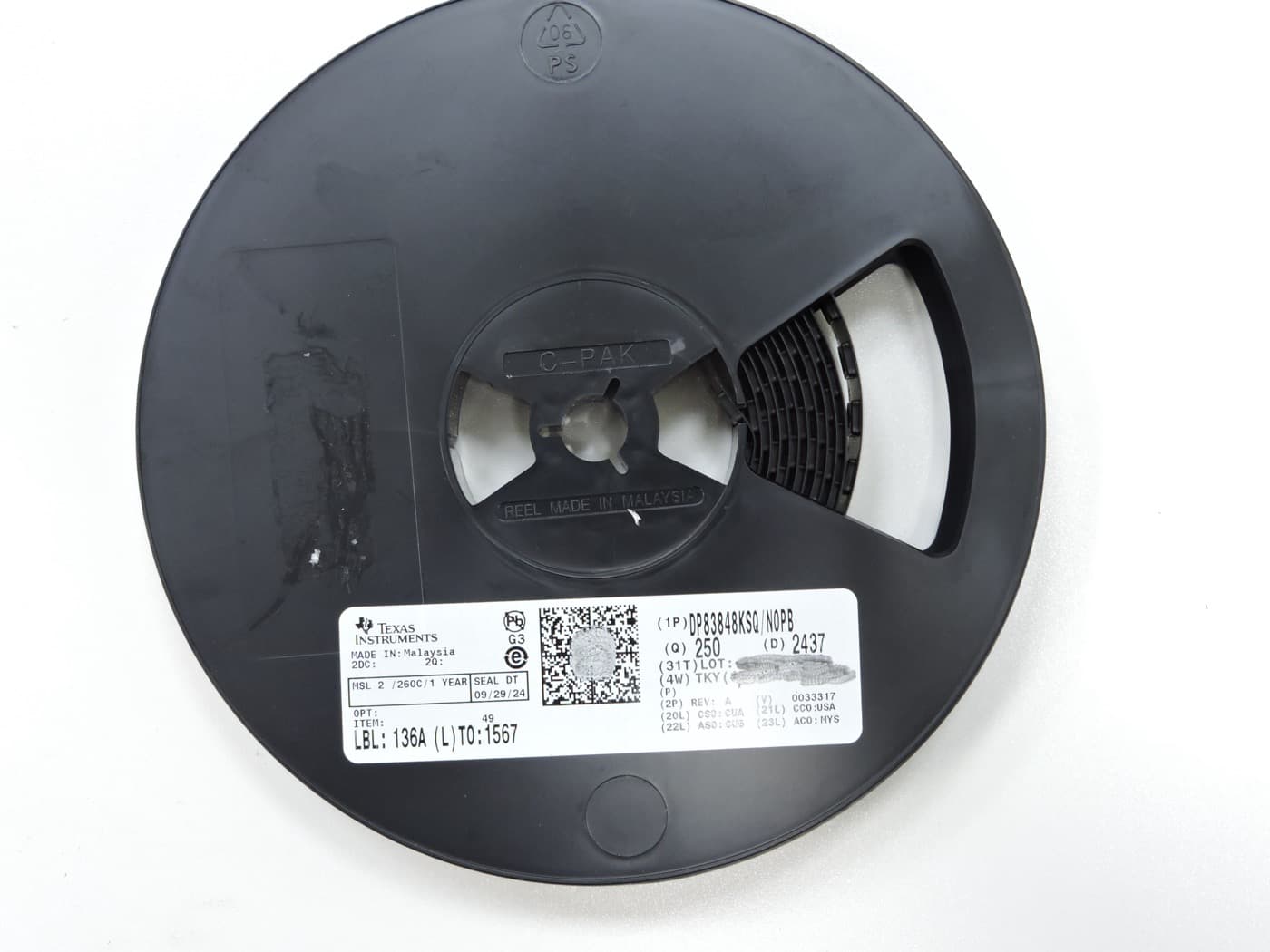

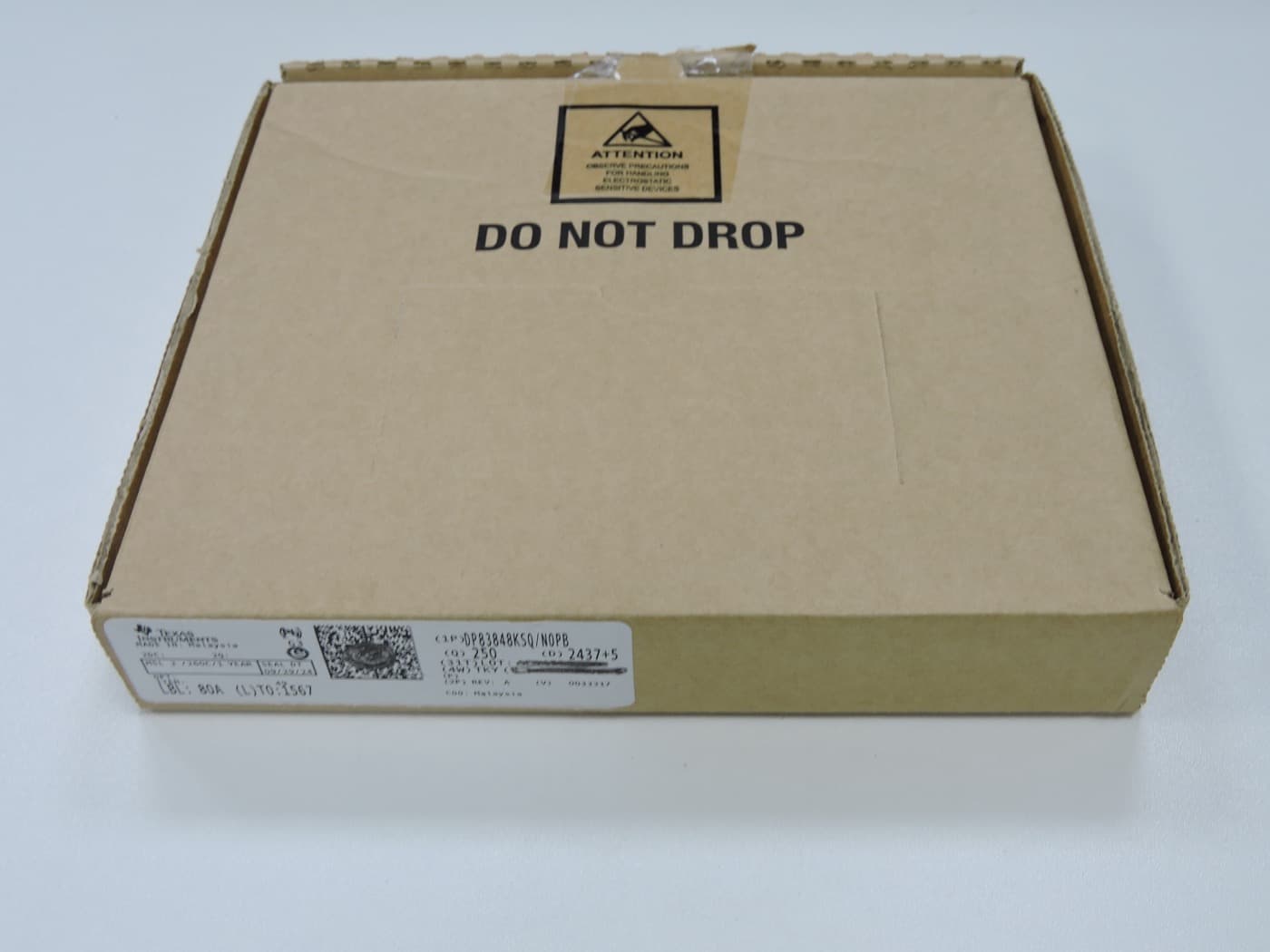

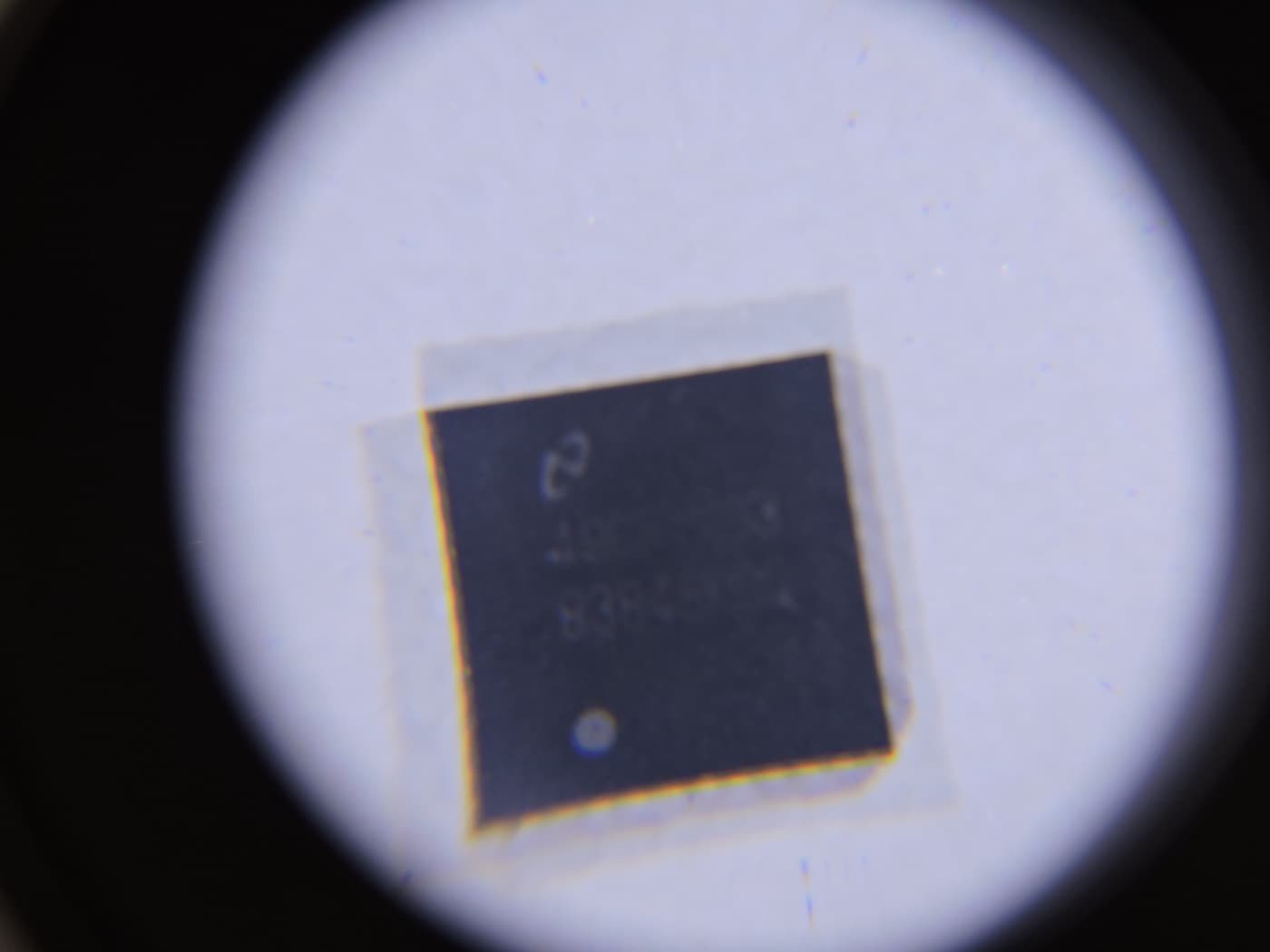

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.

Datasheet

Full specifications

Basic information

Manufacturer	Texas Instruments (TI)

8

Part number	DP83848KSQ

11

Product type	Ethernet Transceiver (PHY)

14

Data rate	10/100 Mbps

Interface characteristics

MAC Interface	MII, RMII, SNI

21

Port count	Single Port

24

Media-dependent interface (MDI)	Auto-MDIX (Automatic Crossover)

27

LED indicator	2 Programmable LEDs (Link/Activity/Speed)

Performance

Cable Length	>137 Meters (Cat-5)

34

ESD protection	±4 kV HBM (Human Body Model)

37

Auto-negotiation	IEEE 802.3u Compatible

40

Duplex mode	Half / Full Duplex

Power & consumption

Supply Voltage	3.0 V to 3.6 V (Typical 3.3 V)

47

Power consumption	264 mW (Typical)

50

Supply current	92 mA (Typical)

Package & environment

Package	40-WQFN (6mm x 6mm)

57

Mounting type	Surface Mount (SMD/SMT)

60

Operating temperature	-40°C to +85°C (Industrial)

63

Moisture sensitivity level	Level 2

Other features

Features	Energy Detect Mode, Loopback Mode, BIST

70

Application areas	Industrial Control, Automotive, Communications
