Communication Interface
CA-IS3722HS
Chipanalog
Dual-Channel Digital Isolator
Key specifications
2 (1 Forward, 1 Reverse)
DC to 150 Mbps
~1.5 mA/channel (@ 1 Mbps)
8-Lead SOIC
- Manufacturer
- Chipanalog
- Package
- 8-Lead SOIC (Narrow & Wide Body)
- Category
- Communication Interface
Genuine, traceable stock

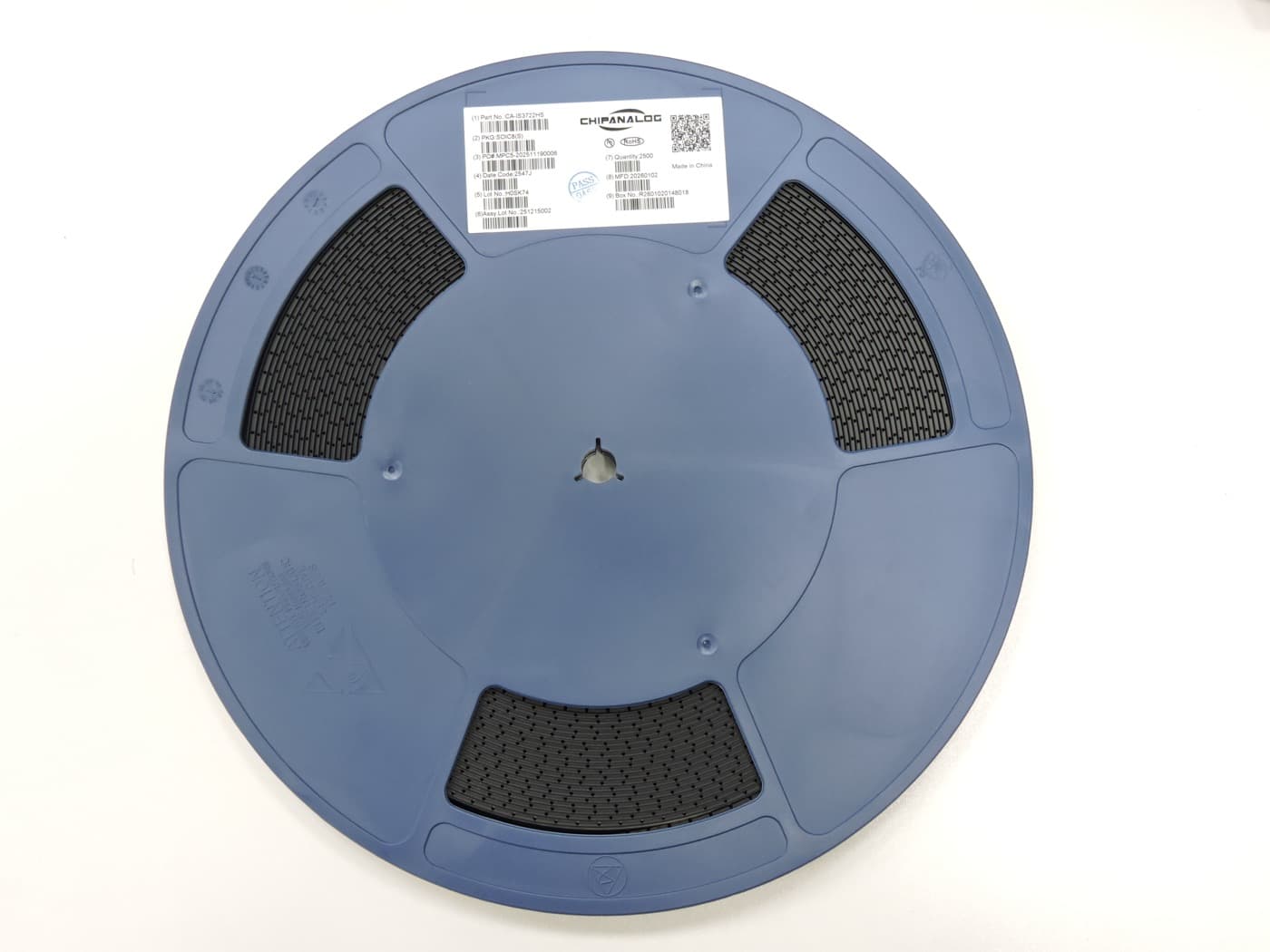

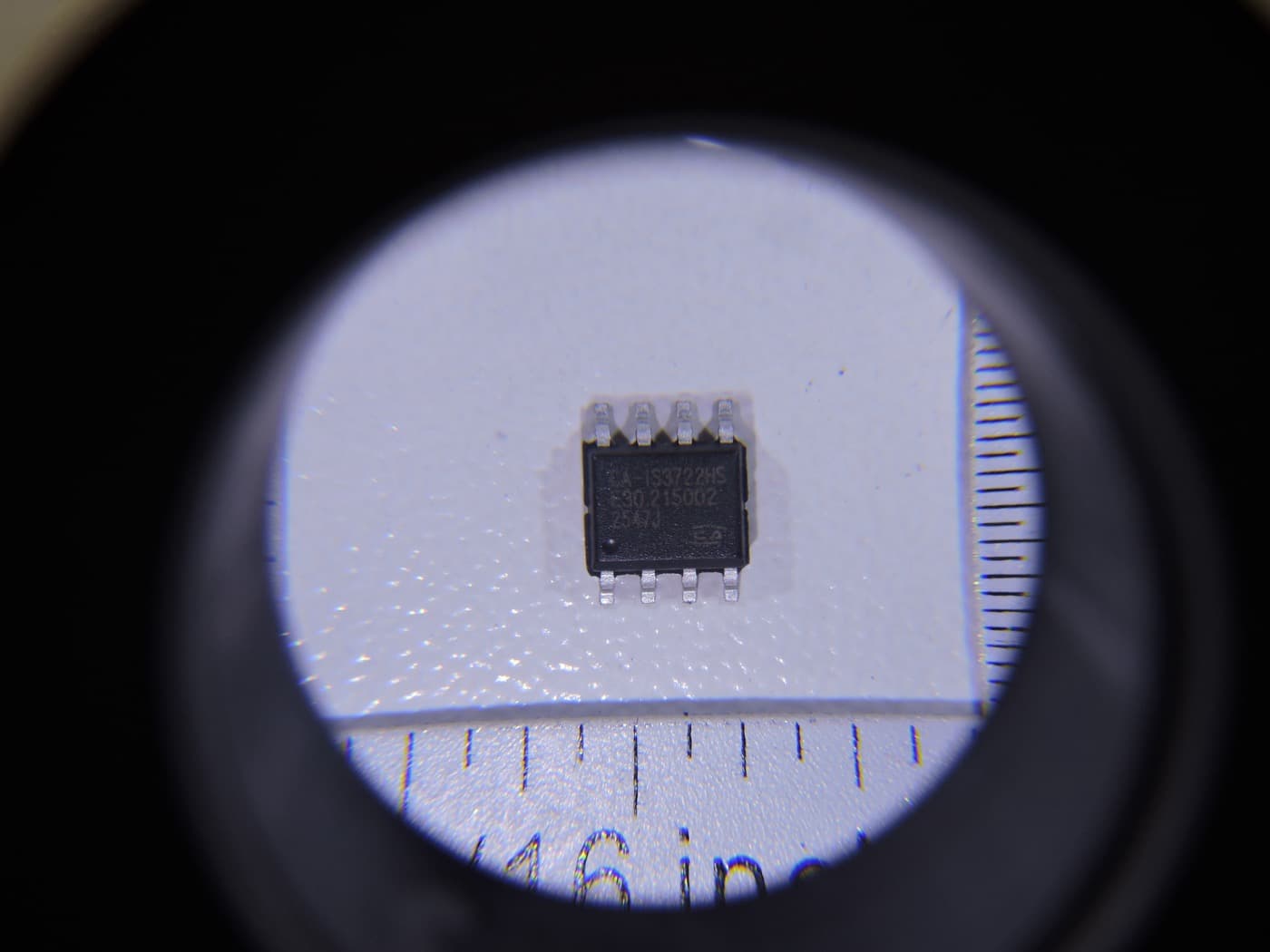

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | Chipanalog |
|---|
8
| Part number | CA-IS3722HS |
|---|
11
| Product type | Dual-Channel Digital Isolator |
|---|
14
| Technology | Capacitive Isolation (SiO₂) |
|---|
Isolation characteristics
| Number of Channels | 2 (1 Forward, 1 Reverse) |
|---|
21
| Isolation voltage | 3.75 kVrms / 5.0 kVrms (Wide Body) |
|---|
24
| Common-mode transient immunity (CMTI) | ±100 kV/µs (Typical) |
|---|
27
| Insulation lifetime | >40 Years |
|---|
Performance
| Data Rate | DC to 150 Mbps |
|---|
34
| Propagation delay | 8 ns (Typical), 12 ns (Max) |
|---|
37
| Pulse-width distortion | 1 ns (Typical) |
|---|
40
| Channel-to-channel skew | 2 ns (Typical) |
|---|
43
| Min pulse width | 5 ns |
|---|
Power & consumption
| Supply Voltage (VDDA/VDDB) | 2.5 V to 5.5 V |
|---|
50
| Quiescent current | ~1.5 mA/channel (@ 1 Mbps) |
|---|
53
| Dynamic current | ~6.6 mA/channel (@ 100 Mbps) |
|---|
56
| Power consumption | Low Power |
|---|
Interface & package
| Logic Input | Schmitt Trigger Inputs |
|---|
63
| Fail-safe output | Default High (Suffix H) |
|---|
66
| Package | 8-Lead SOIC (Narrow & Wide Body) |
|---|
69
| Mounting type | SMD/SMT (Surface-Mount) |
|---|
Operating environment
| Operating Temperature | -40°C to +125°C |
|---|
Other features
| Features | No Initialization Required, High EMI Immunity |
|---|
