Power Management
ICL7662EBD+T
Analog Devices Inc. / Maxim Integrated
Charge Pump Voltage Converter
Key specifications
10 kHz (Typical)
20 mA (Standard)
+4.5 V to +20 V
14-Lead SOIC
- Manufacturer
- Analog Devices Inc. / Maxim Integrated
- Package
- 14-Lead SOIC (SOIC-14)
- Category
- Power Management
Genuine, traceable stock

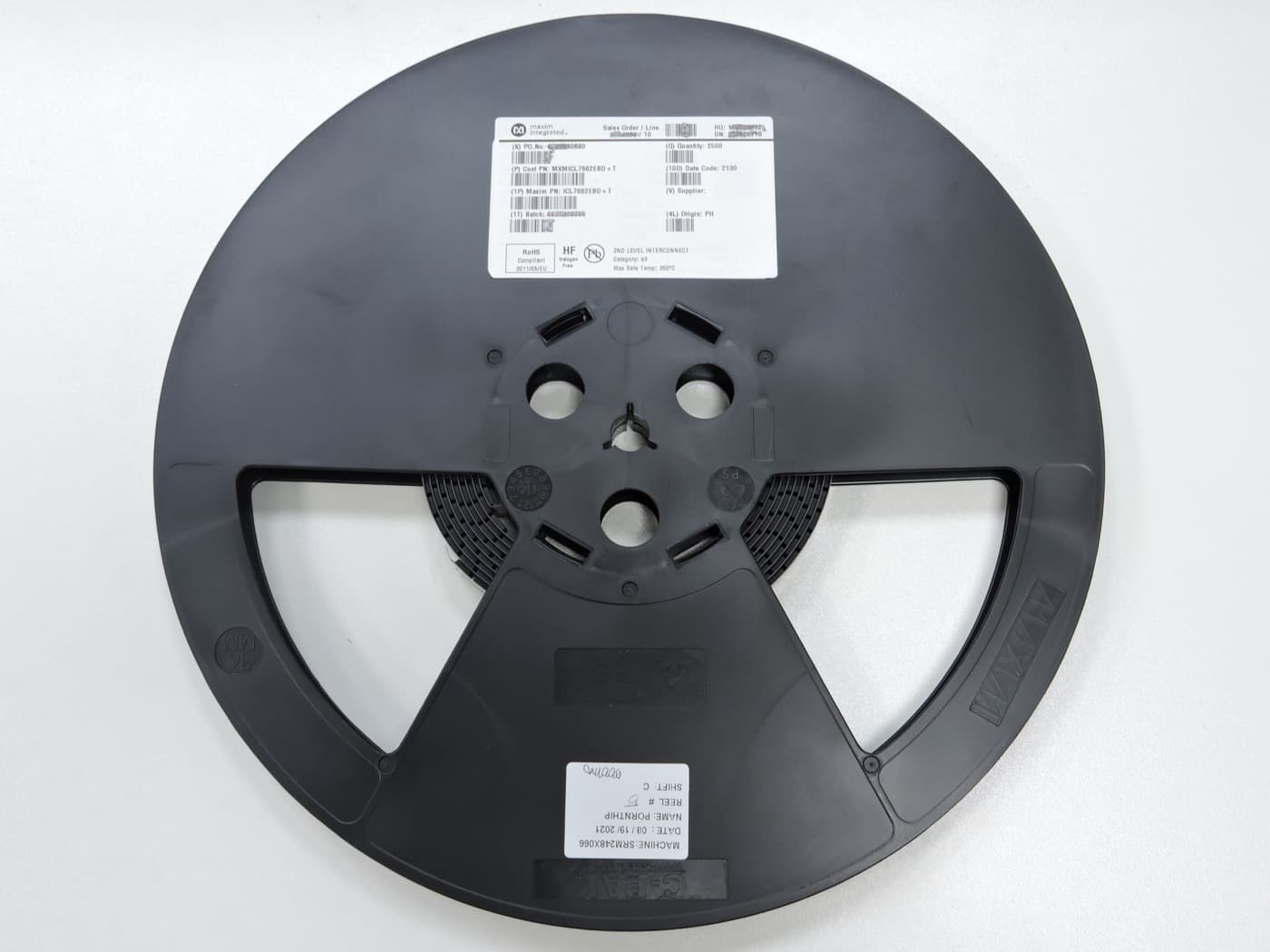

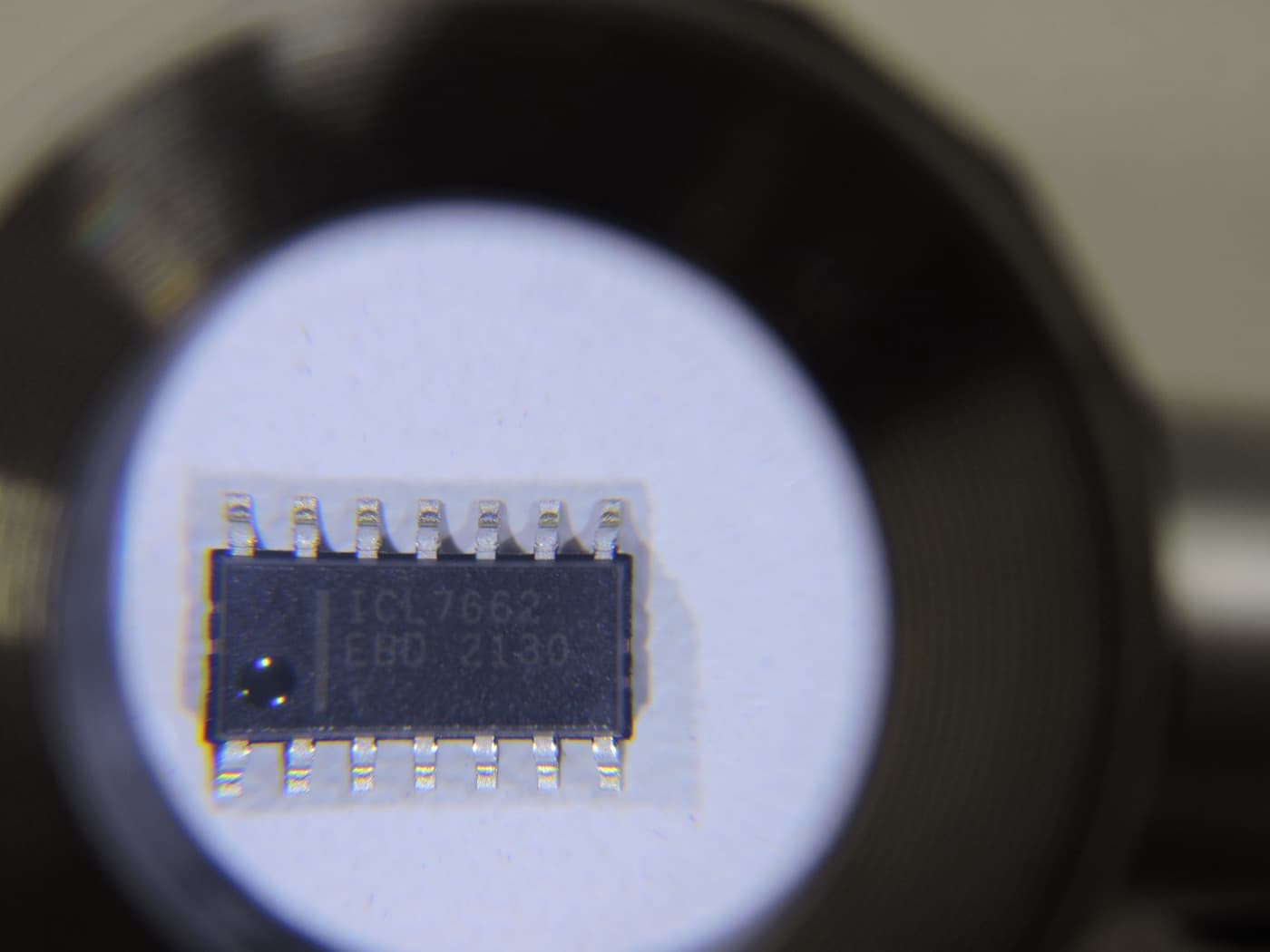

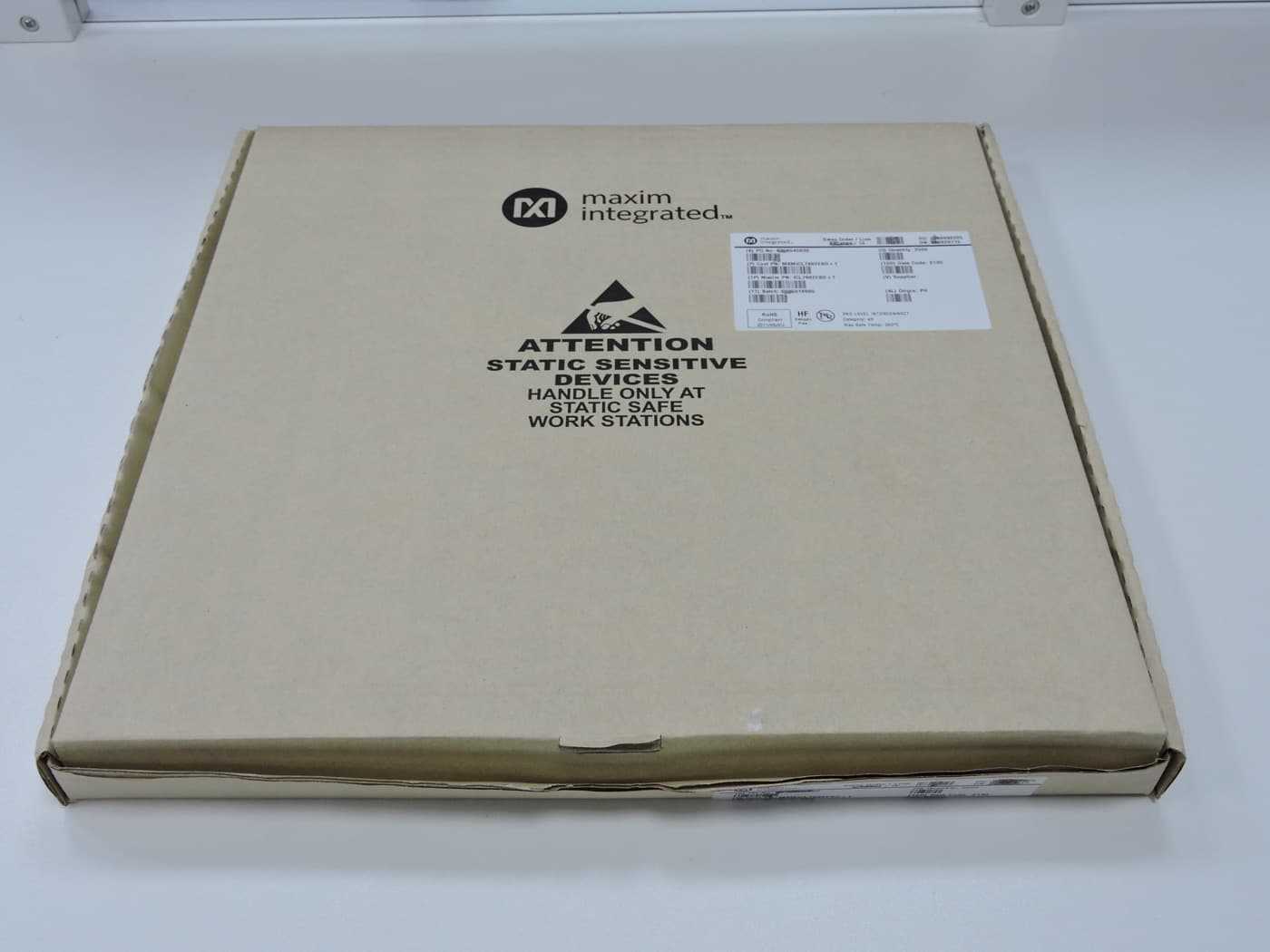

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | Analog Devices Inc. (ADI) / Maxim Integrated |
|---|
8
| Part number | ICL7662EBD+T |
|---|
11
| Product type | Charge Pump Voltage Converter |
|---|
14
| Architecture | Switched Capacitor (Charge Pump) |
|---|
Input / output characteristics
| Input Voltage Range | +4.5 V to +20 V |
|---|
21
| Output voltage | -4.5 V to -20 V (Inverting) |
|---|
25
| Output current | 20 mA (Standard) |
|---|
29
| Conversion efficiency | 99.7% (Open Circuit, Typical) |
|---|
Performance
| Switching Frequency | 10 kHz (Typical) |
|---|
36
| Quiescent current | 250 µA (Typical) |
|---|
39
| External components | 2 Non-Critical Capacitors |
|---|
Power & consumption
| Operating Supply Voltage | 4.5 V to 20 V |
|---|
46
| Quiescent current | 30 µA (Min) |
|---|
48
| Power consumption | Low Power |
|---|
Interface & package
| Pin Functions | BOOST, CAP+, GND, CAP-, VOUT, OSC, LV, V+ |
|---|
55
| Package | 14-Lead SOIC (SOIC-14) |
|---|
58
| Mounting type | SMD/SMT (Surface-Mount) |
|---|
Operating environment
| Operating Temperature | -40°C to +85°C |
|---|
65
| Moisture sensitivity level | Yes |
|---|
Other features
| Features | Pin-Compatible with ICL7660, Latchup Protection, No External Diode Required |
|---|
