ICL7660AIBAZA-T
Renesas Electronics / Intersil
DC/DC Charge Pump Voltage Converter
Key specifications
10 kHz (Typical at 5V)
20 mA (Standard)
1.5 V to 12 V
8-Lead SOIC
- Manufacturer
- Renesas Electronics / Intersil
- Package
- 8-Lead SOIC (NSOIC-8)
- Category
- Power Management
Genuine, traceable stock

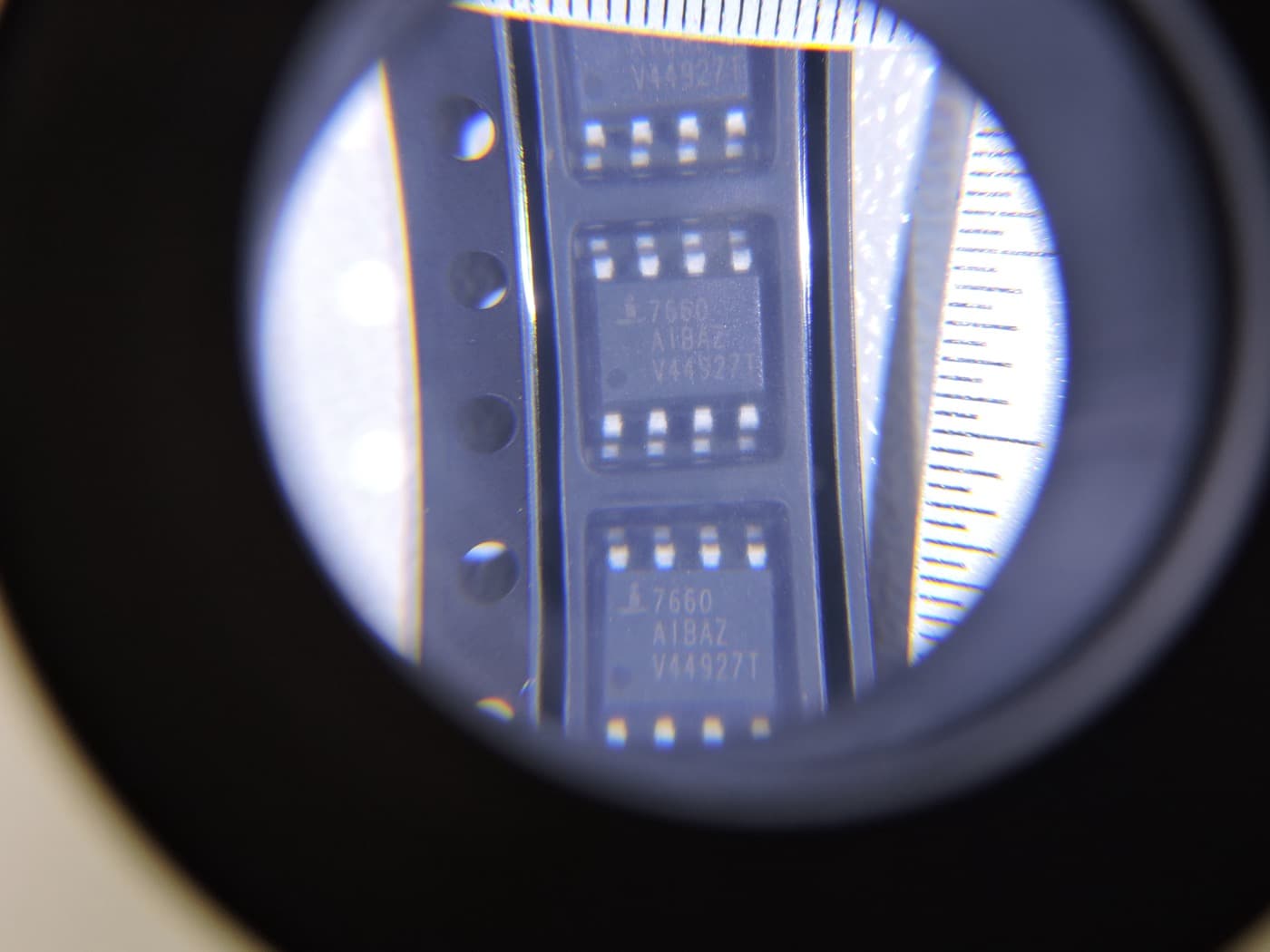

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | Renesas Electronics / Intersil |
|---|
8
| Part number | ICL7660AIBAZA-T |
|---|
11
| Product type | DC/DC Charge Pump Voltage Converter |
|---|
14
| Architecture | Switched Capacitor |
|---|
Input / output characteristics
| Input Voltage Range | 1.5 V to 12 V |
|---|
21
| Output voltage | -1.5 V to -12 V (Inverting) |
|---|
25
| Output current | 20 mA (Standard) |
|---|
29
| Conversion efficiency | >96% (Power Efficiency) |
|---|
Performance
| Switching Frequency | 10 kHz (Typical at 5V) |
|---|
37
| Quiescent current | 26 µA (Typical) |
|---|
40
| External components | 2 Non-Critical Capacitors |
|---|
Power & consumption
| Operating Supply Voltage | 1.5 V to 12 V |
|---|
46
| Quiescent current | <80 µA |
|---|
48
| Power consumption | Low Power |
|---|
Interface & package
| Pin Functions | BOOST, CAP+, GND, CAP-, VOUT, OSC, LV, V+ |
|---|
55
| Package | 8-Lead SOIC (NSOIC-8) |
|---|
58
| Mounting type | SMD/SMT (Surface-Mount) |
|---|
Operating environment
| Operating Temperature | -40°C to +85°C |
|---|
65
| Moisture sensitivity level | Yes |
|---|
Other features
| Features | Frequency Boost Pin, Latchup Protection, No External Diode Required |
|---|
