LPC1788FBD208
NXP Semiconductors
ARM Cortex-M3 Microcontroller (MCU)
Key specifications
120 MHz
5
2.4 V to 3.6 V (Typical 3.3 V)
LQFP-208
- Manufacturer
- NXP Semiconductors
- Package
- LQFP-208 (Low-profile Quad Flat Package)
- Category
- Microcontrollers (MCU)
Genuine, traceable stock

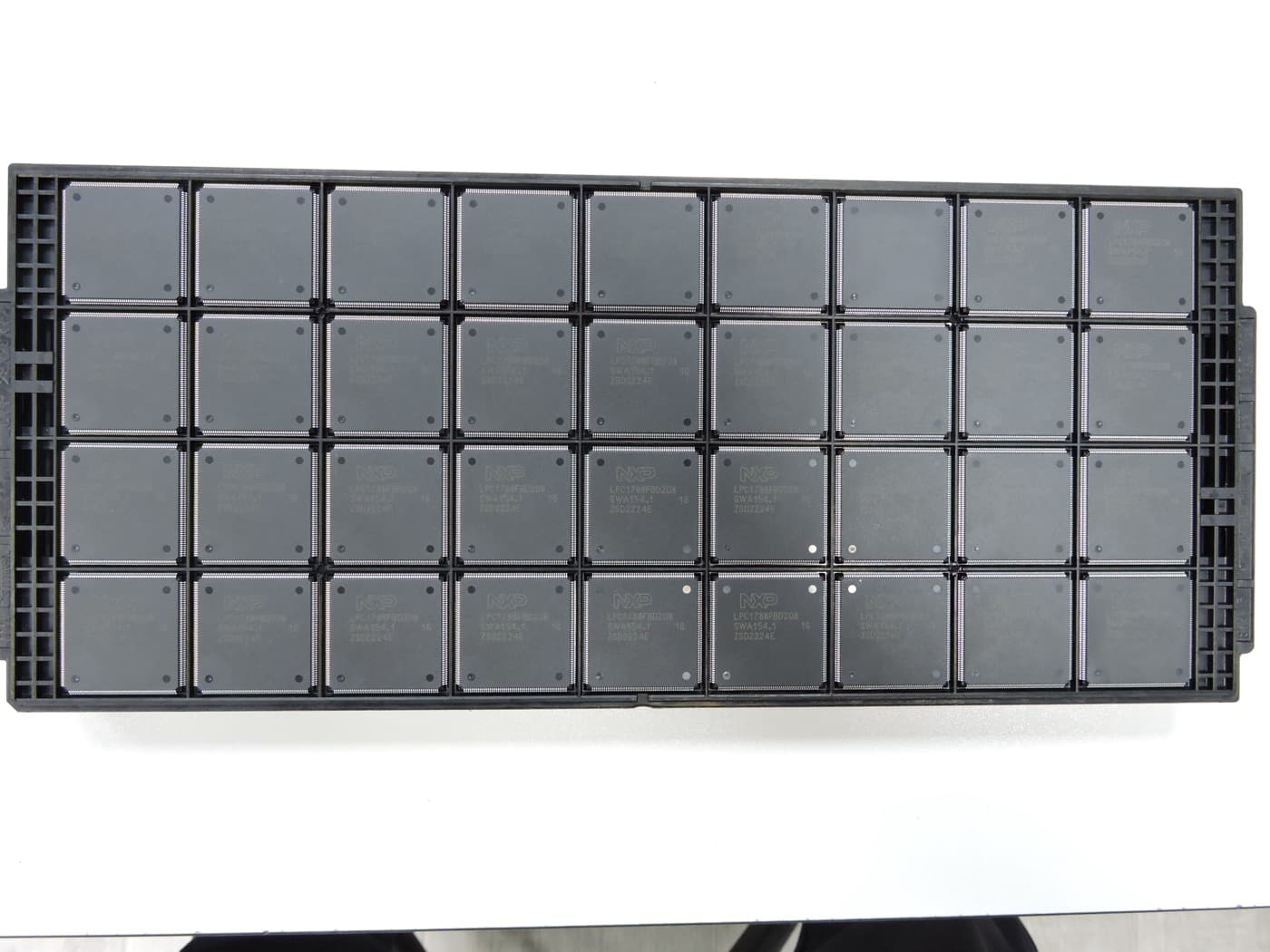

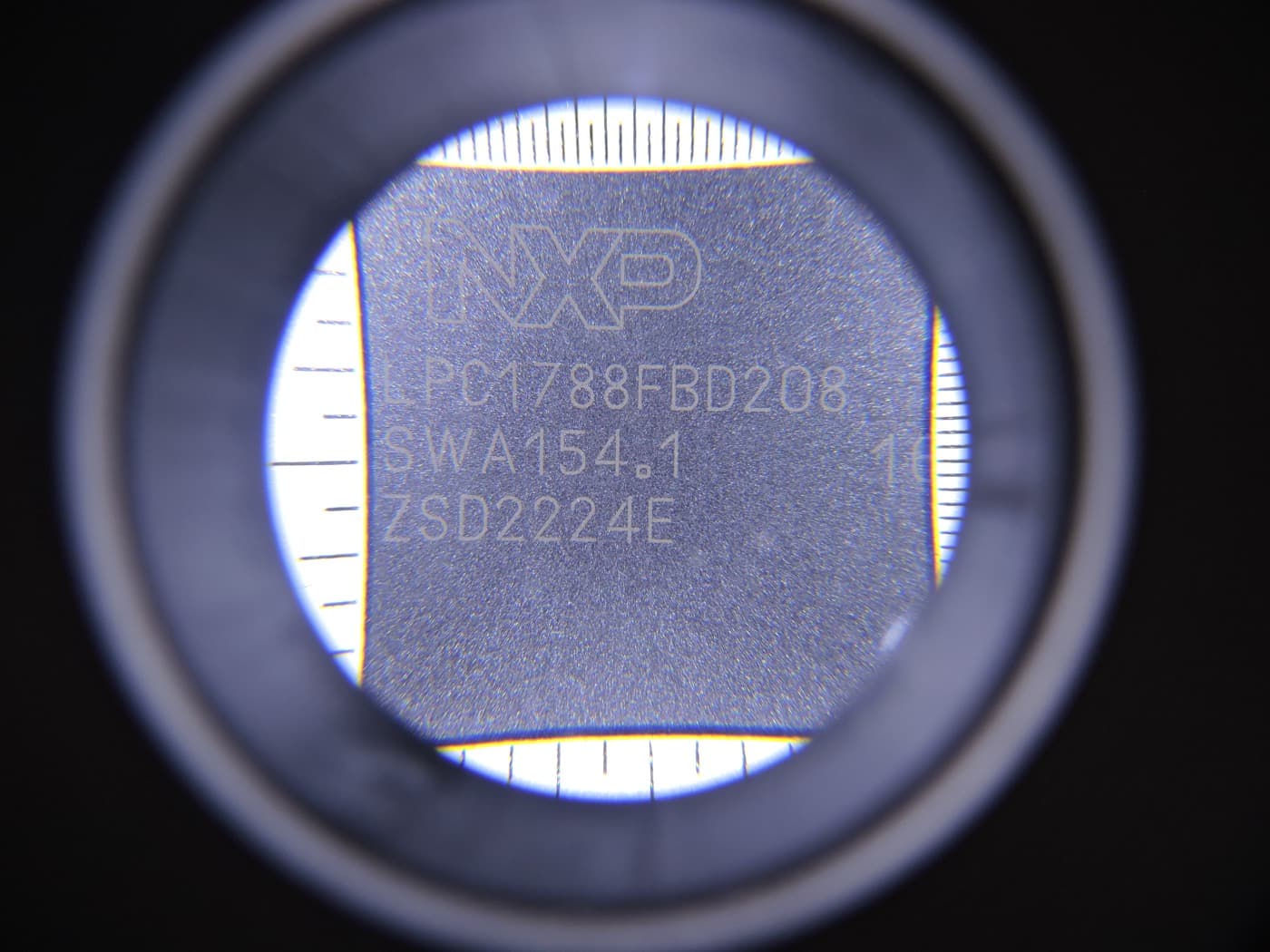

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | NXP Semiconductors |
|---|
8
| Part number | LPC1788FBD208 |
|---|
11
| Product type | ARM Cortex-M3 Microcontroller (MCU) |
|---|
14
| Core | ARM Cortex-M3 |
|---|
Performance
| Max Clock Frequency | 120 MHz |
|---|
21
| Program memory size | 512 KB Flash |
|---|
24
| RAM size | 96 KB SRAM + 4 KB EEPROM |
|---|
27
| Data bus width | 32-bit |
|---|
30
| Instruction set architecture | RISC |
|---|
Interfaces & peripherals
| UART Channels | 5 |
|---|
36
| I²C channels | 3 |
|---|
38
| SPI channels | 3 |
|---|
40
| CAN channels | 2 |
|---|
42
| USB interface | USB 2.0 (Device/Host/OTG) |
|---|
45
| Ethernet interface | 10/100 Ethernet MAC with DMA |
|---|
48
| ADC | 8-channel, 12-bit |
|---|
51
| DAC | 1-channel, 10-bit |
|---|
54
| Timers | 4 x 32-bit General Purpose |
|---|
57
| Pulse-width modulation (PWM) | 6-channel Motor Control PWM |
|---|
60
| GPIO pins | Up to 165 |
|---|
63
| LCD controller | Supports STN and TFT |
|---|
66
| Other interfaces | SD/MMC, I2S, QEI |
|---|
Power & consumption
| Supply Voltage | 2.4 V to 3.6 V (Typical 3.3 V) |
|---|
73
| Power modes | Sleep, Deep-Sleep, Power-down, Deep Power-down |
|---|
Package & environment
| Package | LQFP-208 (Low-profile Quad Flat Package) |
|---|
80
| Mounting type | Surface Mount (SMD/SMT) |
|---|
83
| Dimensions | 28.1 mm x 28.1 mm x 1.45 mm |
|---|
86
| Operating temperature | -40°C to +85°C |
|---|
Other features
| Features | Real-Time Clock (RTC), Watchdog Timer (WDT), JTAG Debugging |
|---|
