LMV321IDBVR
Texas Instruments
Operational Amplifier (Op Amp)
Key specifications
1 (Single)
250 nA (Max)
7 mV (Max at 25°C)
SOT-23-5
- Manufacturer
- Texas Instruments
- Package
- SOT-23-5 (DBV)
- Category
- Op-Amp / Comparator
Genuine, traceable stock

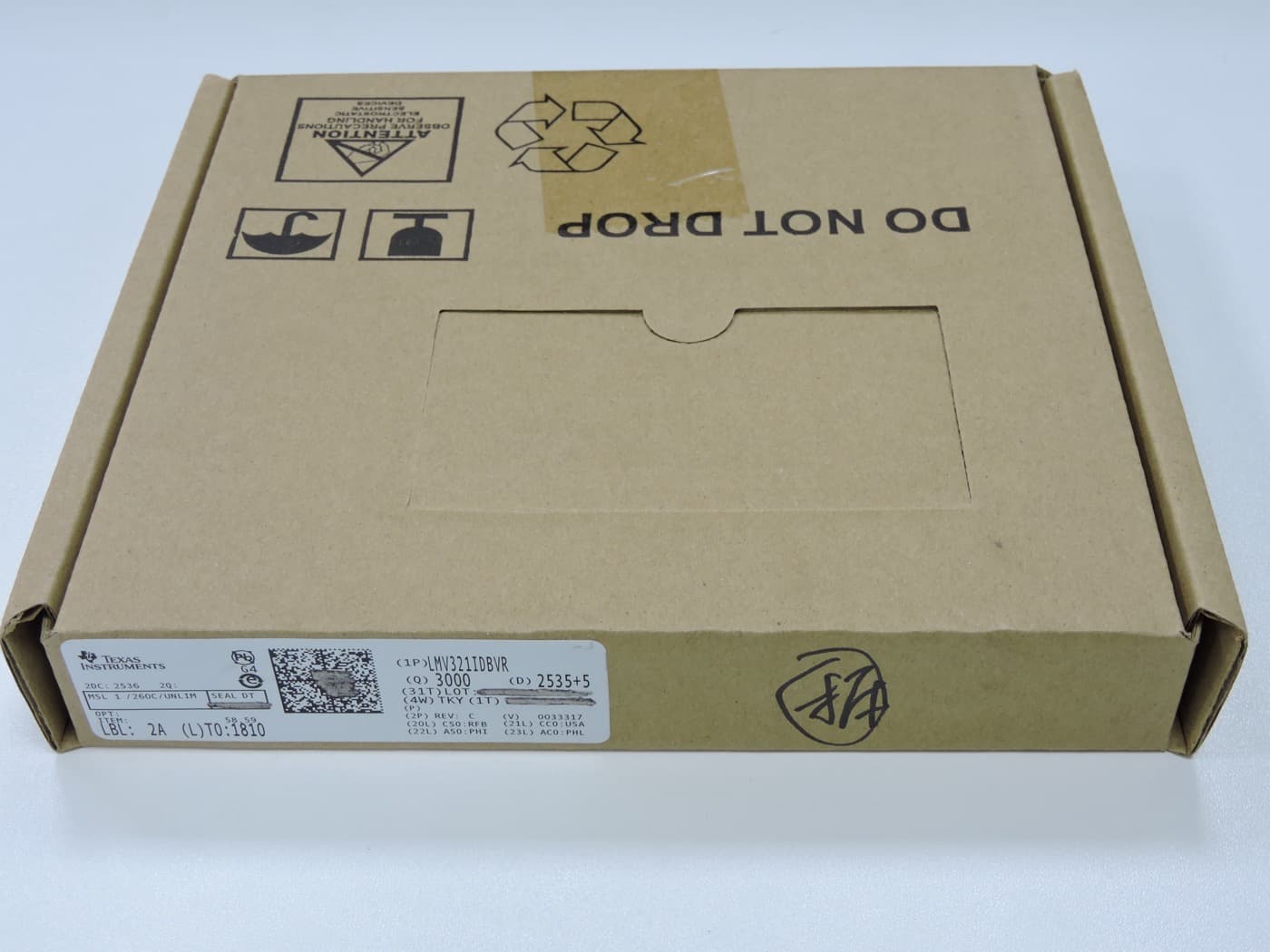

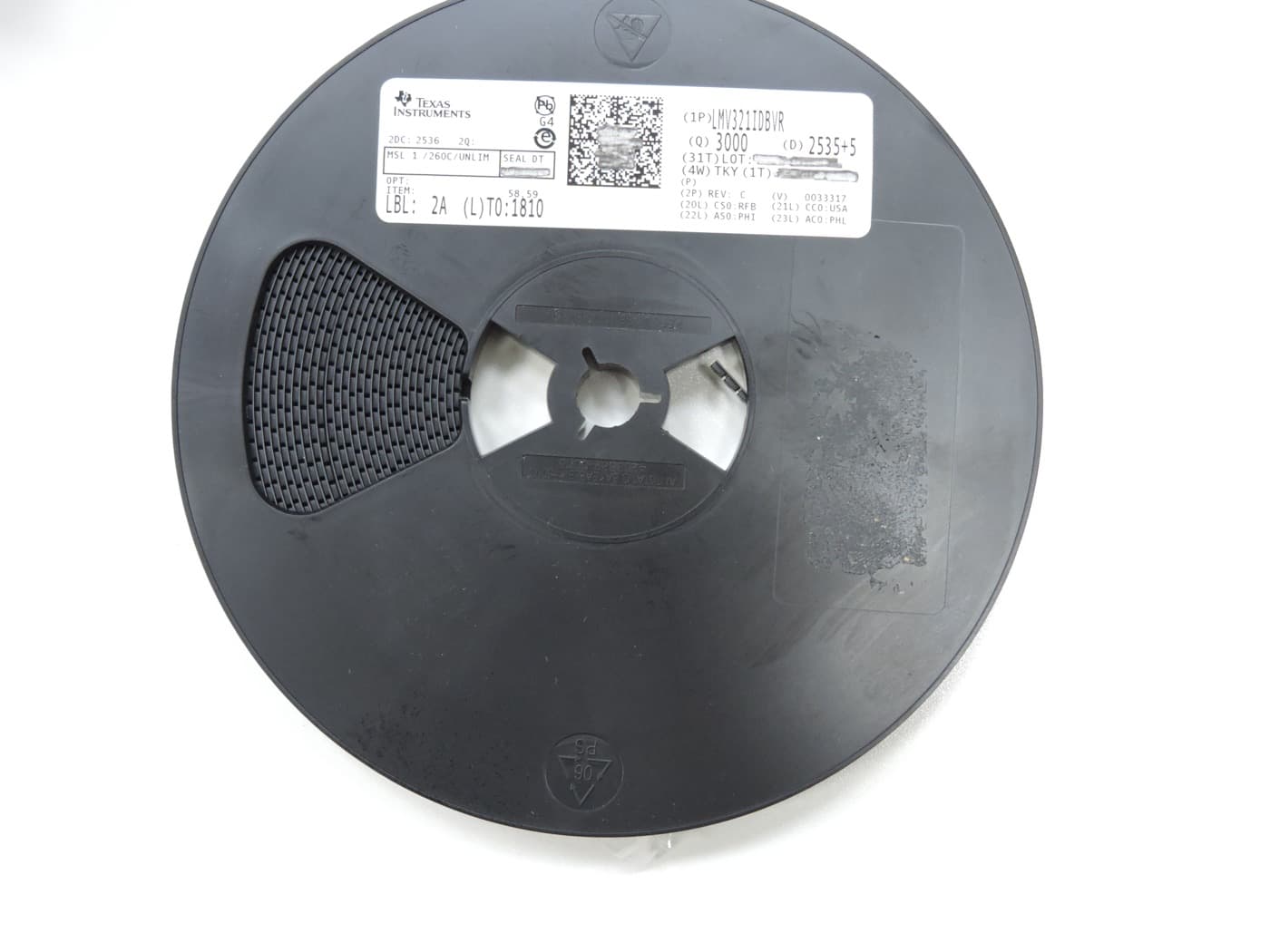

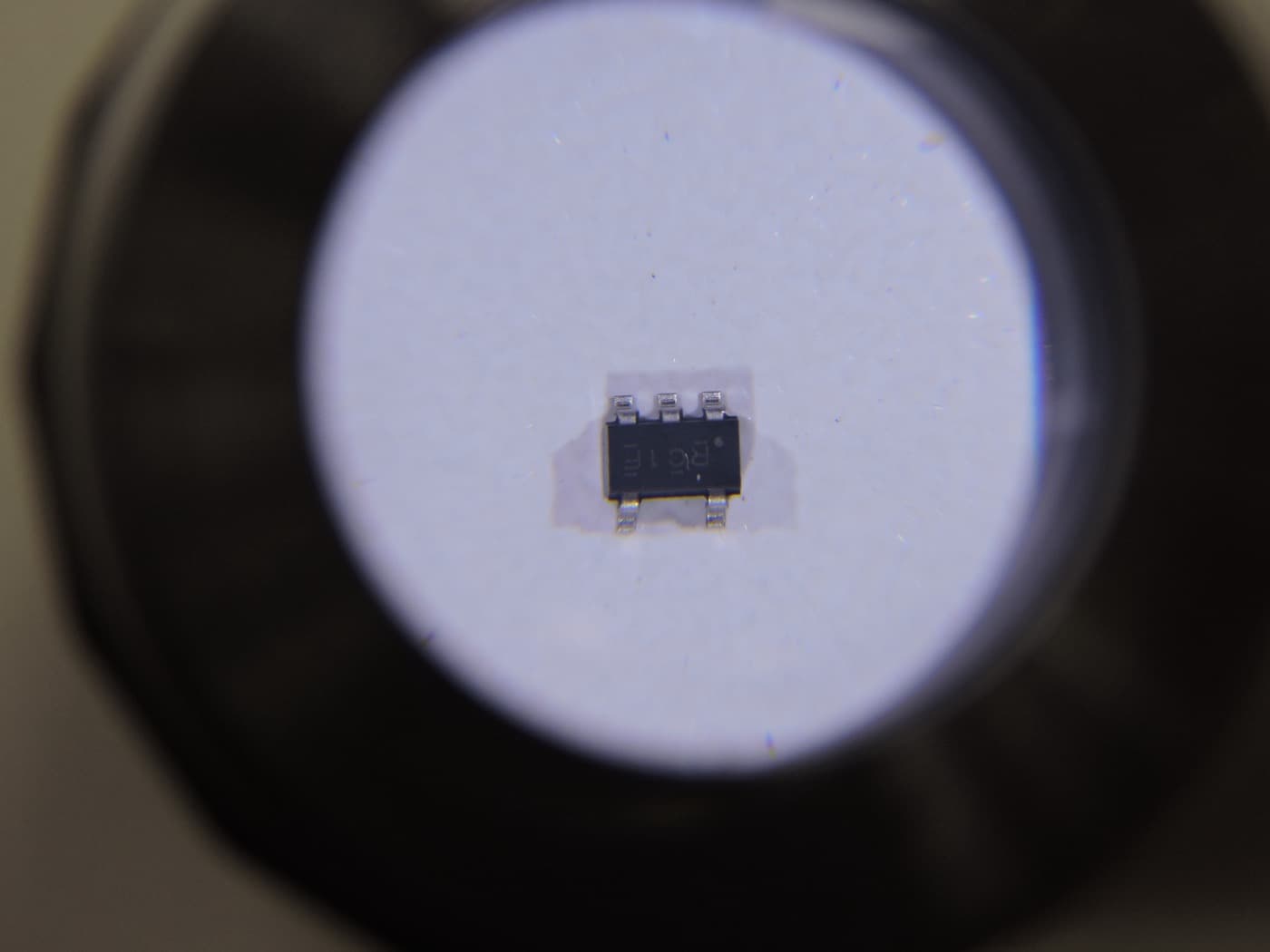

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | Texas Instruments (TI) |
|---|
8
| Part number | LMV321IDBVR |
|---|
11
| Product type | Operational Amplifier (Op Amp) |
|---|
14
| Architecture | BiCMOS |
|---|
Performance
| Number of Channels | 1 (Single) |
|---|
21
| Gain-bandwidth product | 1 MHz |
|---|
24
| Slew rate | 1 V/µs |
|---|
27
| Input offset voltage | 7 mV (Max at 25°C) |
|---|
30
| Input bias current | 250 nA (Max) |
|---|
33
| Common-mode rejection ratio (CMRR) | 50 dB to 65 dB |
|---|
36
| Open-loop gain | 100 dB |
|---|
39
| Output swing | Rail-to-Rail Output (RRO) |
|---|
Power & consumption
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|
46
| Quiescent current | 130 µA (Typical per channel) |
|---|
49
| Output current | 160 mA (per channel) |
|---|
52
| Noise density | 39 nV/√Hz |
|---|
Interface & package
| Package | SOT-23-5 (DBV) |
|---|
59
| Mounting type | SMD/SMT (Surface-Mount) |
|---|
62
| Pin configuration (SOT-23-5) | 1: OUT, 2: V-, 3: IN+, 4: IN-, 5: V+ |
|---|
Operating environment
| Operating Temperature | -40°C to +125°C |
|---|
69
| Moisture sensitivity level | Level 1 |
|---|
Other features
| Features | Low Voltage Operation, No Crossover Distortion, ESD Protection >2000V HBM |
|---|
76
| Application areas | HVAC, Motor Control, Power Supplies, Portable Media Players |
|---|
