AD7606BSTZ-RL
Analog Devices Inc.
Data Acquisition System (DAS) / ADC
Key specifications
16 bit
8
Up to 200 kSPS (per channel)
LQFP-64
- Manufacturer
- Analog Devices Inc.
- Package
- LQFP-64
- Category
- ADC/DAC Data Conversion
Genuine, traceable stock

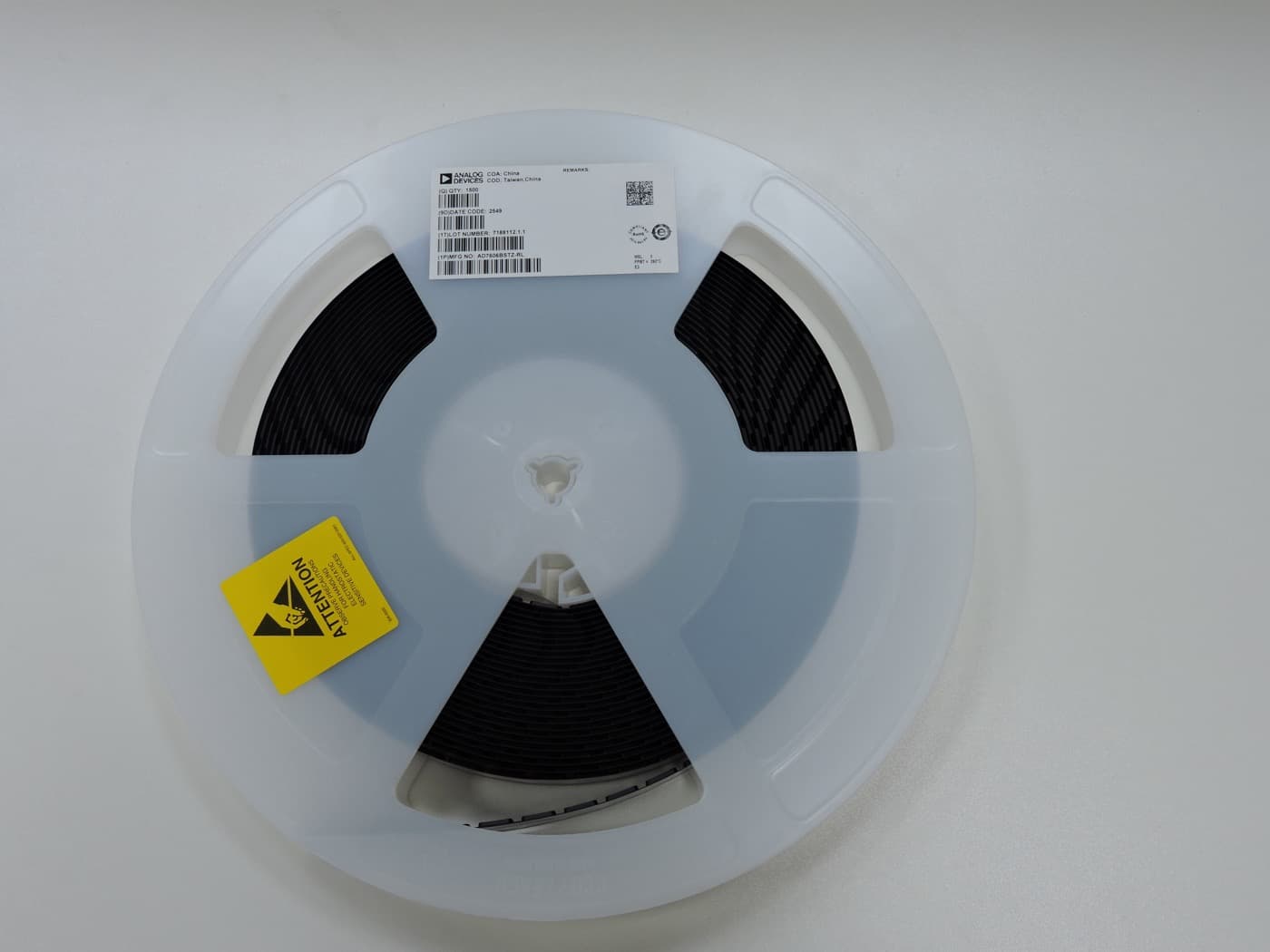

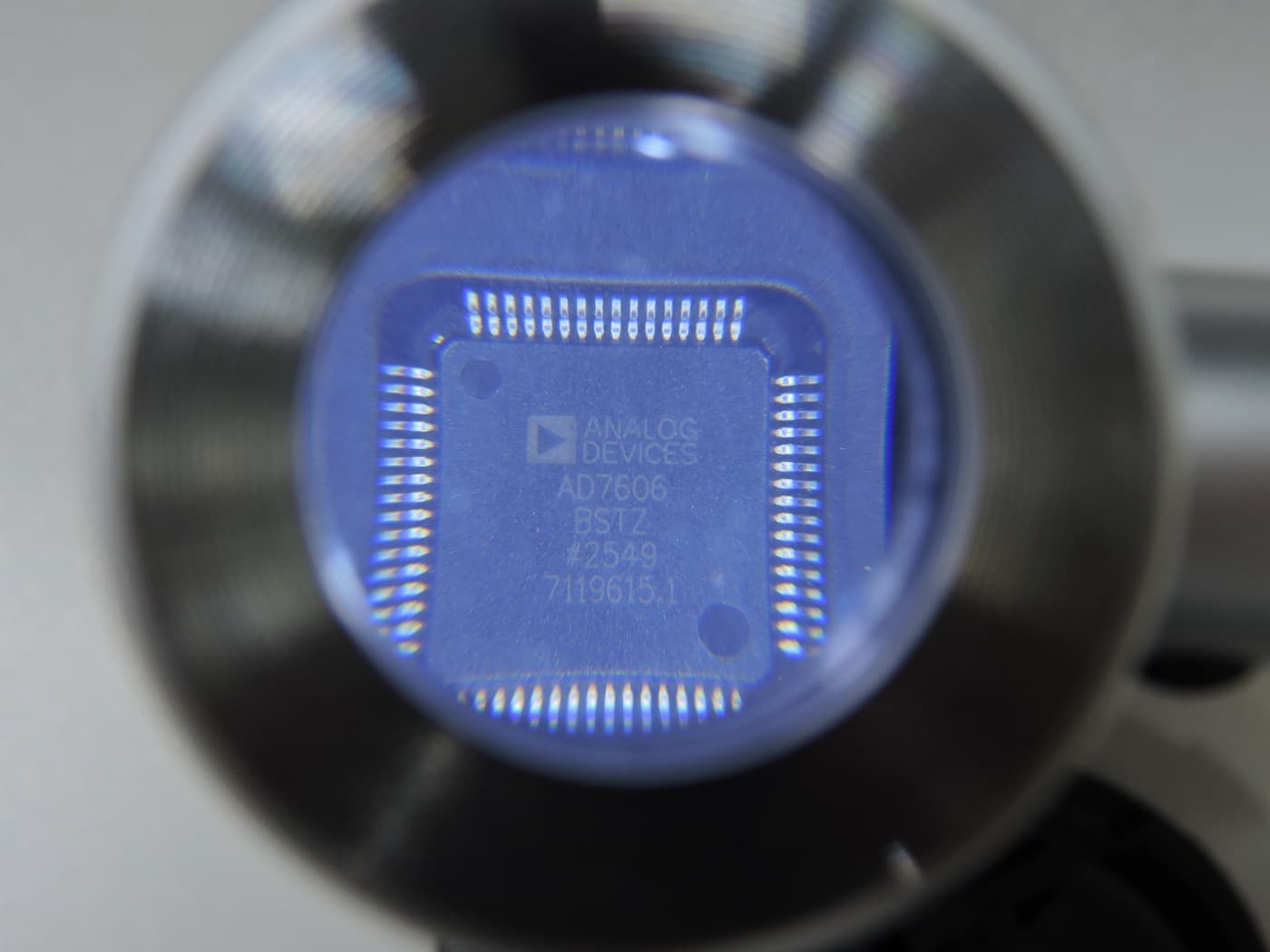

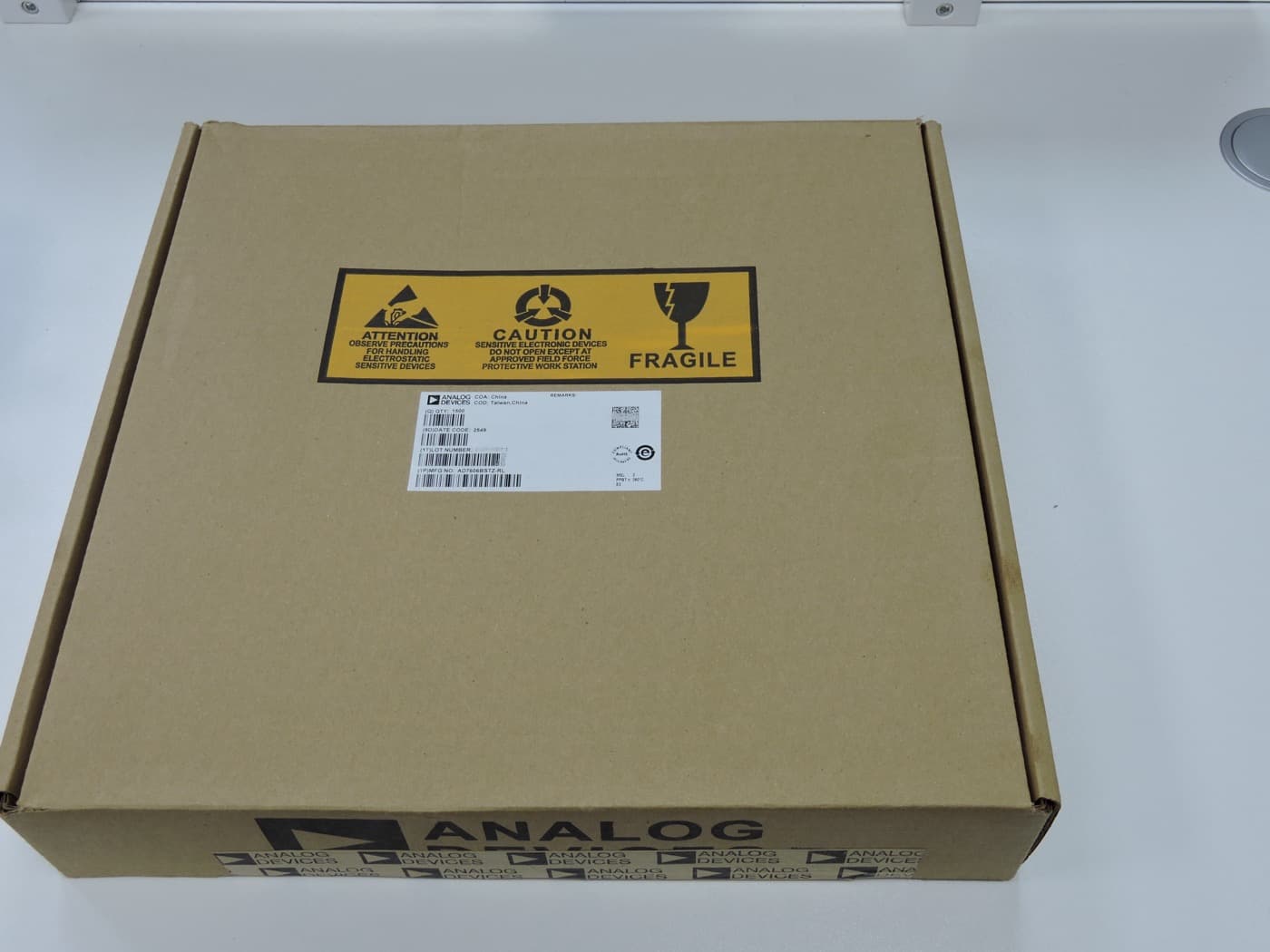

Photographed in our warehouse — factory-sealed with intact labels, lot and date codes.
Datasheet
Full specifications
Basic information
| Manufacturer | Analog Devices Inc. (ADI) |
|---|
8
| Part number | AD7606BSTZ-RL |
|---|
11
| Product type | Data Acquisition System (DAS) / ADC |
|---|
14
| Architecture | SAR (Successive Approximation Register) |
|---|
Analog input
| Number of Channels | 8 |
|---|
20
| Input type | Single-Ended, True Bipolar |
|---|
23
| Input voltage range | ±10 V, ±5 V |
|---|
26
| Analog input impedance | 1 MΩ |
|---|
29
| Input protection | Clamp Protection up to ±16.5 V |
|---|
Performance
| Resolution | 16 bit |
|---|
36
| Sample rate | Up to 200 kSPS (per channel) |
|---|
39
| Signal-to-noise ratio (SNR) | 95.5 dB |
|---|
42
| Total harmonic distortion (THD) | -107 dB |
|---|
45
| Integral nonlinearity (INL) | ±0.5 LSB |
|---|
48
| Differential nonlinearity (DNL) | ±0.5 LSB |
|---|
Power & consumption
| Supply Voltage (AVcc) | 5 V (4.75 V to 5.25 V) |
|---|
54
| Digital I/O supply | 2.3 V to 5 V |
|---|
57
| Power consumption | 100 mW (typical), 142 mW (max) |
|---|
60
| Standby power | 25 mW |
|---|
Reference voltage
| Reference Voltage Source | Internal or External |
|---|
67
| Reference voltage value | 2.5 V |
|---|
Interface & package
| Interface Type | Parallel, Serial (SPI/QSPI/MICROWIRE/DSP compatible) |
|---|
74
| Package | LQFP-64 |
|---|
77
| Mounting type | SMD/SMT (Surface-Mount) |
|---|
Operating environment
| Operating Temperature | -40°C to +85°C |
|---|
84
| Moisture sensitivity level | Yes |
|---|
Other features
| Antialiasing Filter | Integrated 2nd-order analog filter (22 kHz cutoff) |
|---|
91
| ESD rating | 7 kV on analog input channels |
|---|
